165 LC Atlas excavator specs & Dimensions (2024 - 2026)

Weight: 17.5t – Transport length: 8m – Transport width: 2.5m – Transport height: 3m – Bucket capacity: 0.7m³ – Undercarriage: LC…

Weight: 17.5t – Transport length: 8m – Transport width: 2.5m – Transport height: 3m – Bucket capacity: 0.7m³ – Undercarriage: LC

Check out detailed specifications, information and technical data for Atlas 165 LC excavator manufactured between 2024 - 2026. Get more in-depth insight with Atlas 165 LC digger specifications. See information, like: Weight: 17.5t – Transport length: 8m – Transport width: 2.5m – Transport height: 3m – Bucket capacity: 0.7m³ – Undercarriage: LC and more.

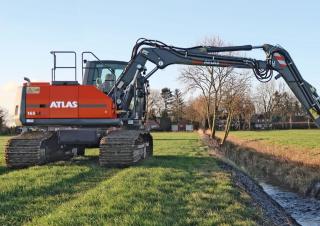

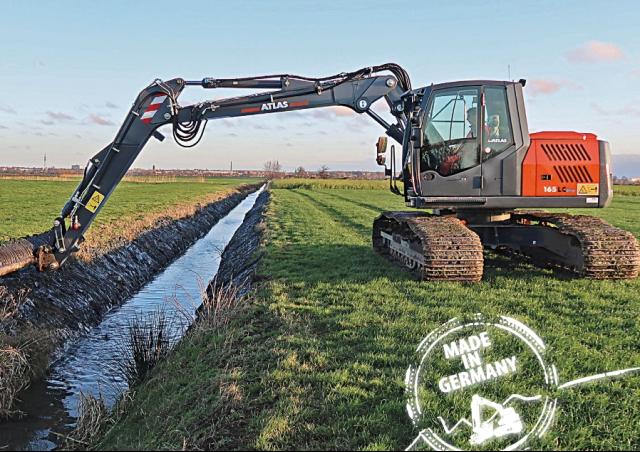

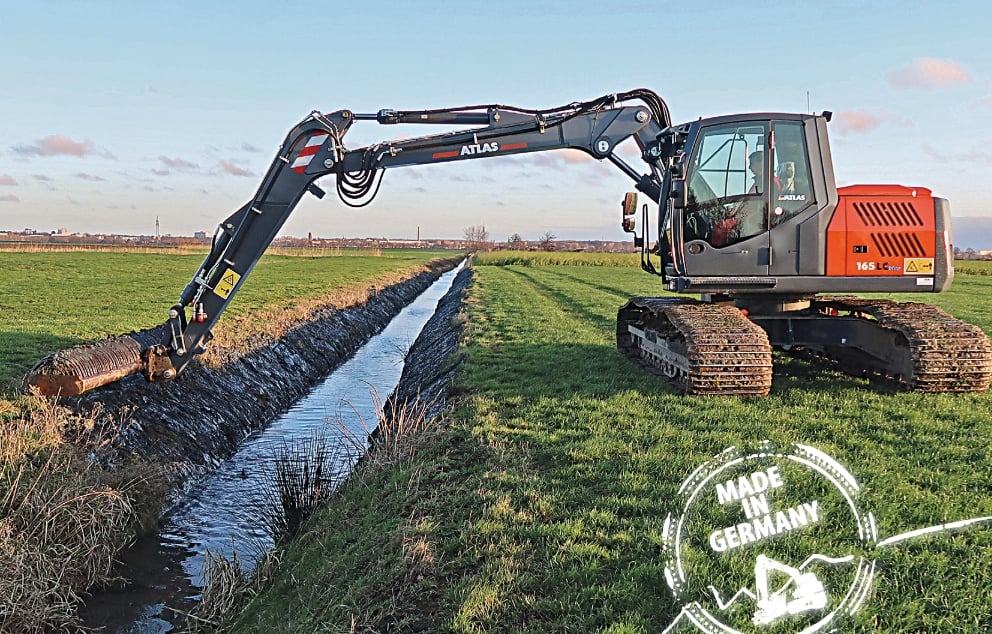

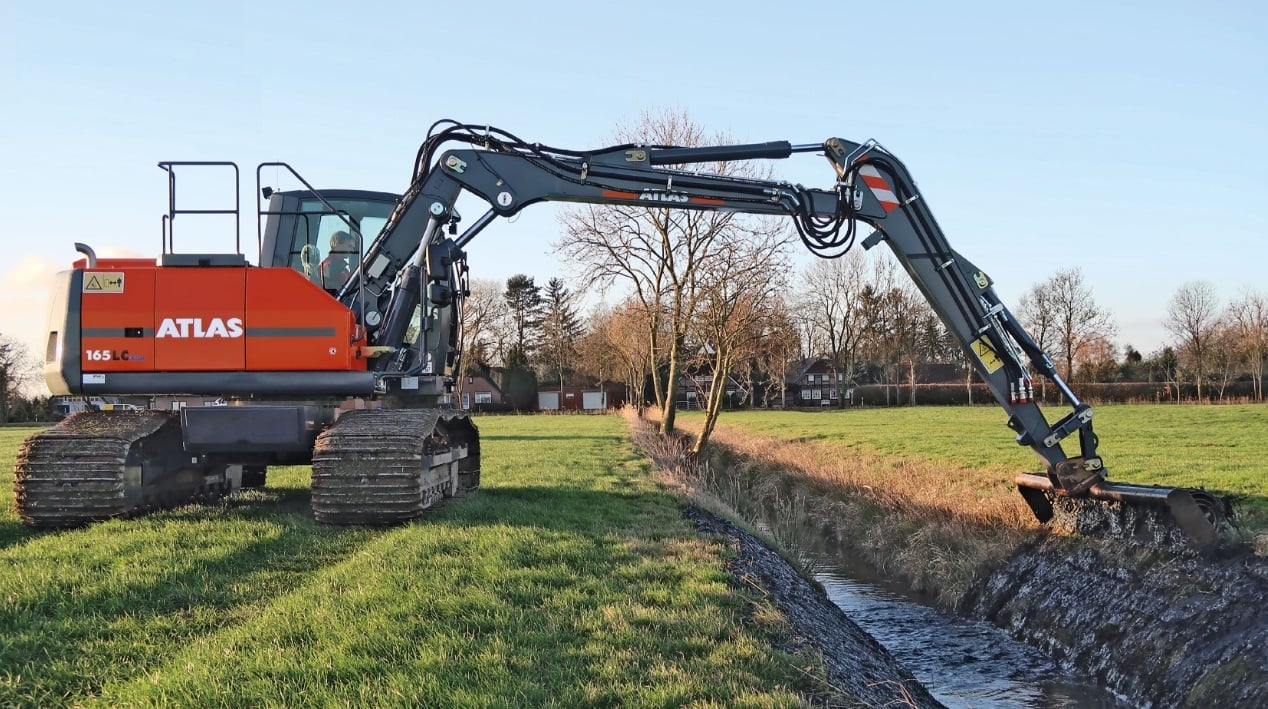

Crawler Excavators Atlas 165 LC
Crawler Excavators Atlas 165 LC
Crawler Excavators Atlas 165 LC
Crawler Excavators Atlas 165 LC

Visit Atlas live at

Technical specs - 165 LC Atlas

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
17.5 t
Transport length
8 m
Transport width
2.5 m
Transport height
3 m
Bucket capacity
0.7 m³
Undercarriage
LC
Track width
600 mm
Boom
VA
Max. Reach horizontal
9.3 m
Dredging depth
6.7 m
Tear-out force
64 kN
Bucket width
1.3 m
Engine manuf.
Deutz
Engine type
TCD4.1
Engine power
115 kW
Displacement
4.038 l
Revolutions at max torque
1800 rpm
No. of cylinders
4
Emission level
V

More technical details, like: bucket capacity min., bucket capacity max., model series, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Atlas 165 LC FAQ

When was the Atlas 165 LC manufactured?

The Atlas 165 LC was first produced in 2024.

How much does the Atlas 165 LC crawler excavator weigh?

The Atlas 165 LC crawler excavator weighs 17.5 tons.

What are the transport dimensions of the Atlas 165 LC crawler excavator?

The Atlas 165 LC has a transport length of 8 meters, a transport width of 2.5 meters, and a transport height of 3 meters.

What are the undercarriage specifications of the Atlas 165 LC?

The Atlas 165 LC has a long undercarriage with a track width of 600 mm.

What are the excavation performance specifications of the Atlas 165 LC crawler excavator?

The Atlas 165 LC crawler excavator has an adjustable boom, a dredging depth of 6.7 meters, and a maximum horizontal reach of 9.3 meters.

What are the power ratings of the Atlas 165 LC?

The source data does not provide power ratings for the Atlas 165 LC.

What are the bucket specifications of the Atlas 165 LC excavator?

The Atlas 165 LC excavator has a bucket capacity of 0.7 cubic meters and a bucket width of 1.3 meters.

How much is a Atlas 165 LC Crawler excavator (2024u20132025) worth?

The residual value of the Atlas 165 LC depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
