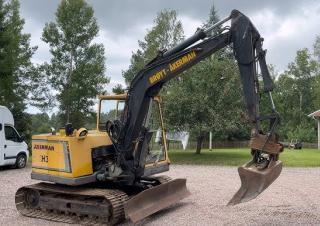

H3 Akerman-Volvo excavator specs & Dimensions (1985 - 1991)

Akerman-Volvo H3 is a crawler excavator manufactured from 1985 to 1991, with a weight of 8 tons, a track width of 500 mm, and a tr…

Akerman-Volvo H3 is a crawler excavator manufactured from 1985 to 1991, with a weight of 8 tons, a track width of 500 mm, and a transport width of 2 meters. It has a dredging depth of 3 meters and a maximum horizontal reach of 7 meters.

Crawler Excavators Akerman-Volvo H3

Technical specs - H3 Akerman-Volvo

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
8.1 t
Transport width
2.3 m
Track width
500 mm
Max. Reach horizontal
7.1 m
Dredging depth
3.9 m
Engine manuf.
Volvo Penta
Engine type
TD30A
Engine power
49 kW
Displacement
2.4 l
Revolutions at max torque
2600 rpm
No. of cylinders
4

More technical details, like: transport length, transport height, bucket capacity, bucket capacity min., bucket capacity max., undercarriage, boom, tear-out force, bucket width, model series, dimension lxwxh, max. torque...

More technical details, like: transport length, transport height, bucket capacity, bucket capacity min., bucket capacity max., undercarriage, boom, tear-out force, bucket width, model series, dimension lxwxh, max. torque, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Akerman-Volvo H3 FAQ

When was the Akerman-Volvo H3 manufactured?

The Akerman-Volvo H3 was manufactured from 1985 to 1991.

How much does the Akerman-Volvo H3 weigh?

The Akerman-Volvo H3 weighs 8.1 tons.

What is the transport width of the Akerman-Volvo H3?

The transport width of the Akerman-Volvo H3 is 2.3 meters.

What is the track width of the Akerman-Volvo H3's undercarriage?

The Akerman-Volvo H3 has a track width of 500 mm.

What are the excavation performance specifications of the Akerman-Volvo H3?

The Akerman-Volvo H3 has a dredging depth of 3.9 meters and a maximum horizontal reach of 7.1 meters.

How much is a Akerman-Volvo H3 Crawler excavator (1985u20131991) worth?

The residual value of the Akerman-Volvo H3 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
