TF 35.7 CS-120 Merlo Telehandler Specs & Dimensions (2015 - 2016)

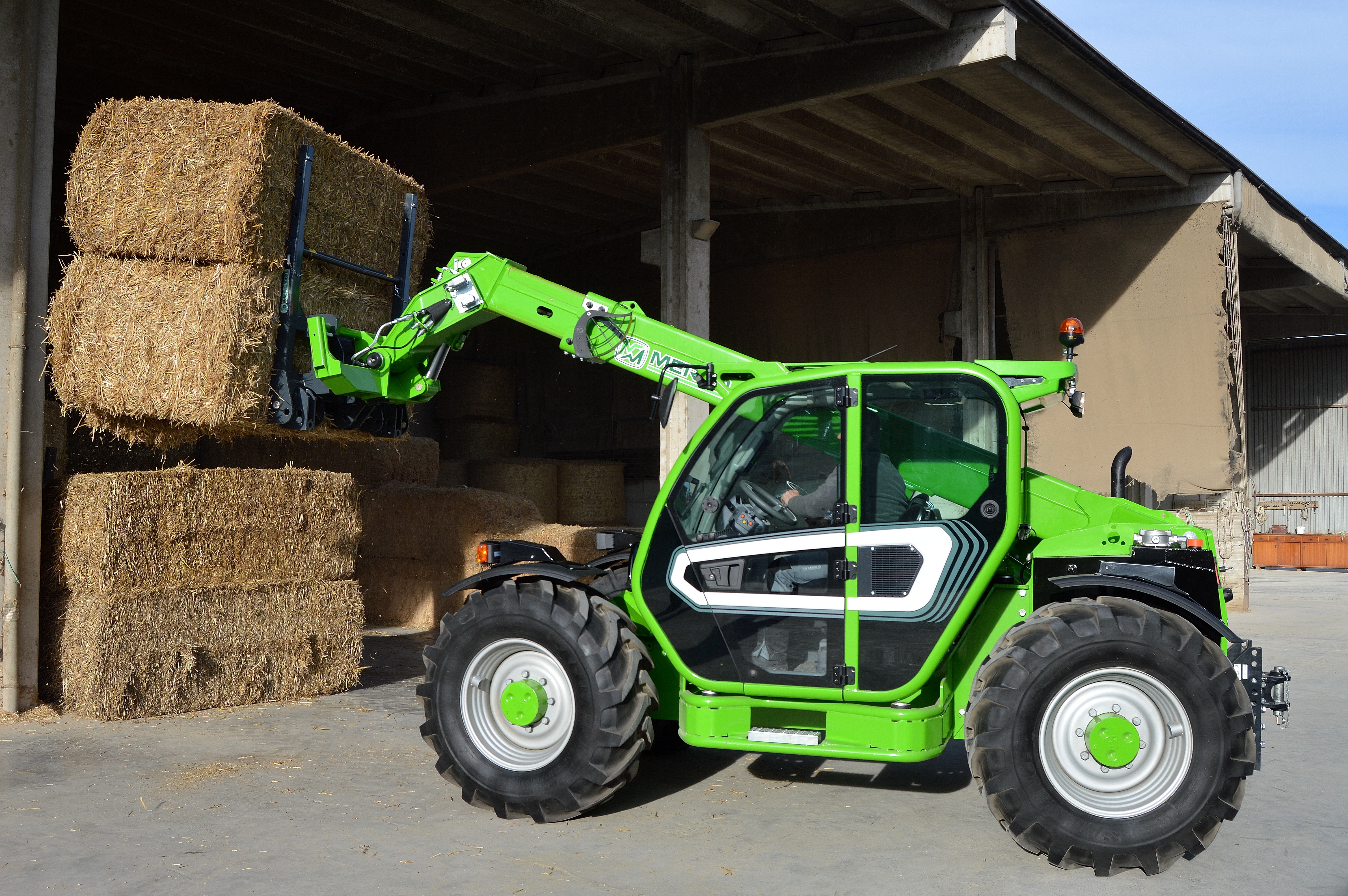

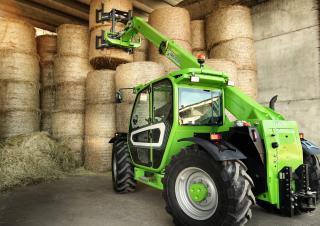

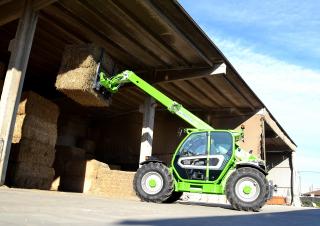

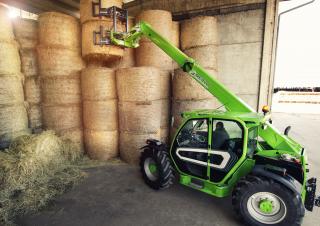

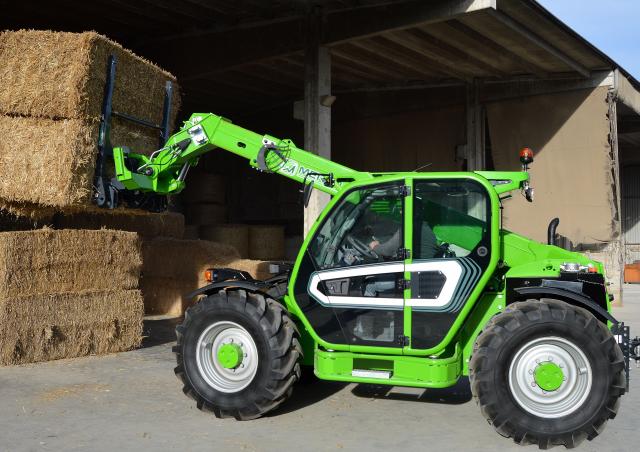

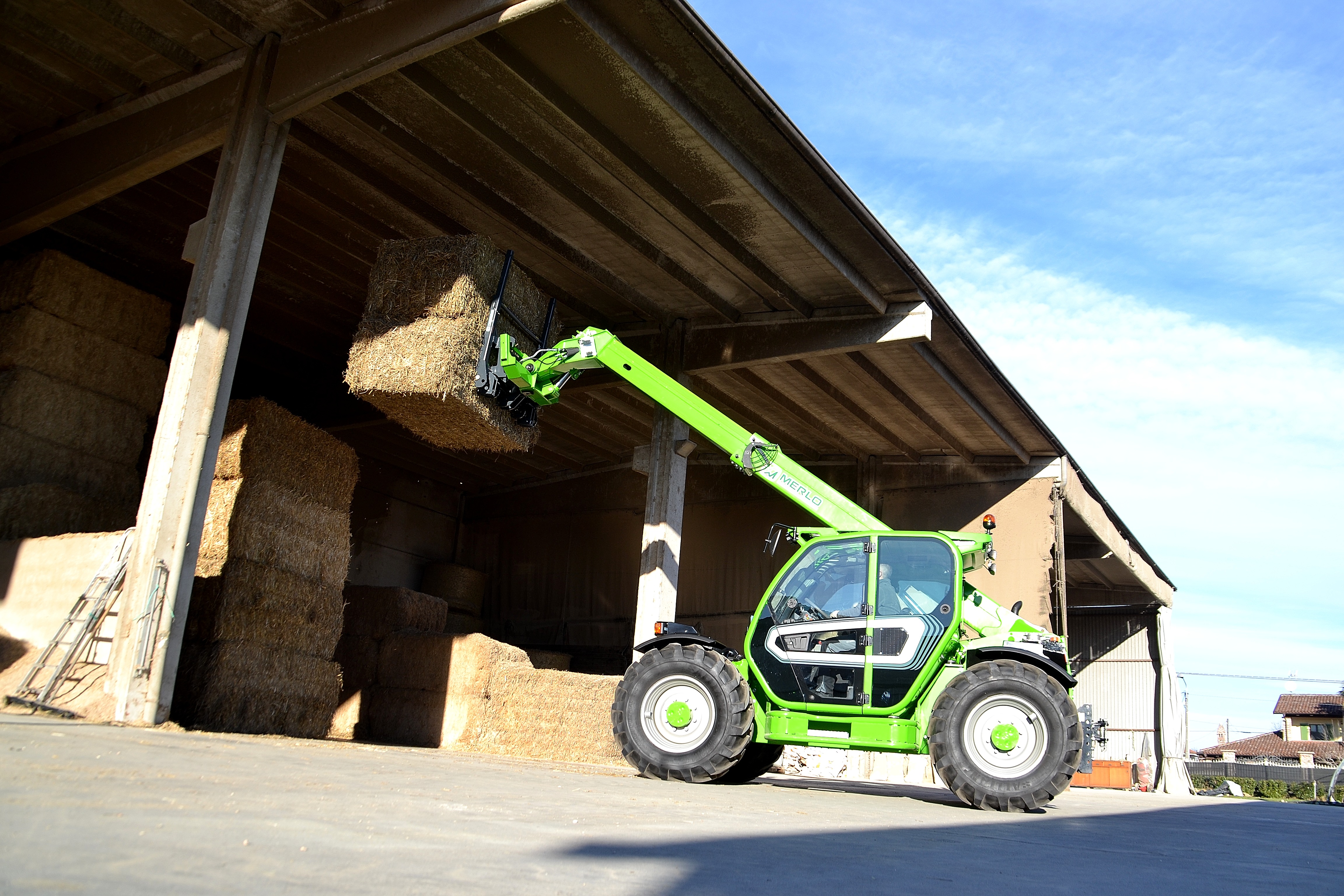

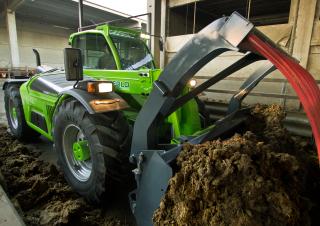

Name: Merlo TF 35.7 CS-120 Telehandlers
Brand: Merlo

The Merlo TF 35.7 CS-120 is a telehandler manufactured from 2015 to 2016. It has a weight of 6.5 tons and a transport length of 4.…

The Merlo TF 35.7 CS-120 is a telehandler manufactured from 2015 to 2016. It has a weight of 6.5 tons and a transport length of 4.3 meters. The nominal load at the center of gravity is 3.5 tons, and it has a lifting height of 6.7 meters. The capacity at full forward reach is 1.35 tons. The center of gravity is located at 500 millimeters. It has a travel speed of 40 km/h and a maximum climbing ability of 45 percent. The capacity at full lift height is 3.5 tons. The transport width is 2.24 meters, and the transport height is 2.25 meters. It is equipped with StVZO equipment.

TF 35.7 CS-120

Years of manufacture: 2015—2016

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - TF 35.7 CS-120 Merlo

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG: 3.5 t

Model series: TF

Centre of gravity: 500 mm

Standard tyres: 405/70 R24 14 PR

Transmission type: HY

Max. Reach horizontal: 3.5 m

Capacity at full forward reach: 1.35 t

Lifting height: 6.7 m

Capacity at full lift height: 3.5 t

Weight: 6.5 t

Transport length: 4.3 m

Transport width: 2.24 m

Transport height: 2.25 m

Travel speed: 40 km/h

max. climbing ability: 45 %

Engine manuf.: Kubota

Engine type: V2203EB

Engine power: 90 kW

Dimension lxwxh: 701 x 592 x 790 mm

Displacement: 3.6 l

Revolutions at max torque: 1600 rpm

Max. torque: 480 Nm

No. of cylinders: 4

Cylinder bore x stroke: 98 x 120 mm

Emission level: IIIB

More technical details, like: drive system, voltage, traction motor, hoist motor, travel speed with / without load, hoisting with / without load, lowering with load are available in the full technical specs.

All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulic and shovel

Special equipment

Diesel particulate filter: No
StVZO Equipment: Yes
Inclination correction: No
Side displacement: No

Download datasheets (PDF)

TF 35.7 CS-120 Merlo Specification for Europe (DE)
