    Komatsu WH609 Specifications & Technical Data (2004-2009)

    Rate this machine now!

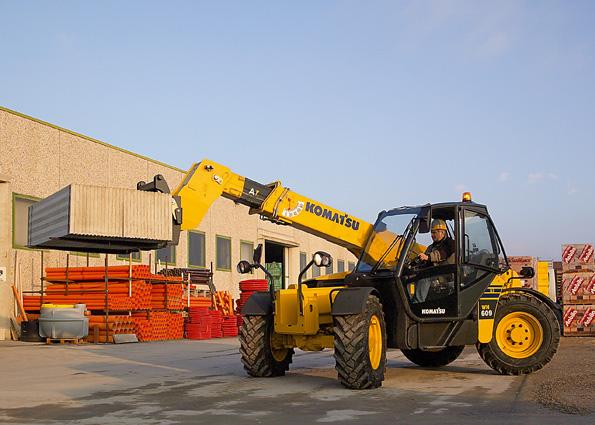

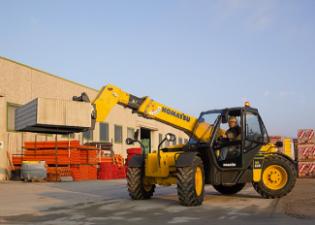

    Manufactured by Komatsu, this is the WH 609 telehandler. Find and download detailed specs and data sheets for this machine here. ... Read more

    Manufactured by Komatsu, this is the WH 609 telehandler. Find and download detailed specs and data sheets for this machine here.

    This telehandler is built to provide up to 74kW or 99 horse power, delivered from its powerful Komatsu engine to the 8.66t WH 609 machine. The WH 609 is categorised in the medium sized machine segment in the telehandlers category. The WH 609’s size is 2.37m x 5.525m x 2.39m. 405/70-24 PR14 is the size of standard tyres equipped on this Komatsu WH 609 telehandler. 38km/h is a maximum speed of which this Komatsu Telehandler can travel. It can operate with up to 5,2m of horizontal reach. It can lift 3.5t of nominal load with a 500mm centre of gravity. This telehandler from Komatsu is able to work with 1t capacity at up to 9m height. At full forward reach, this model can control a weight of 1.32t.

    The WH 609 is manufactured and distributed with Inclination correction. It has been sold without StVZO Equipment, Diesel particulate filter and Side displacement as of 2009. Take the original Komatsu WH 609 datasheet for even more detailed specifications and machine details. You can download it for free in English, French, Italian, Spanish, German and Czech on LECTURA Specs.

    The production stopped in 2009, where this WH 609 was available at a new list price between €72,000 and €92,000. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

    The WH 609 Komatsu can be compared to several models from other manufacturers. The closest telehandlers based on specification and pricing are the Merlo TF 35.7 G, Genie GTH 3512 SX and Dieci ET Runner 35.12. Komatsu currently produces other telehandlers, which range from up to - the most visited on LECTURA Specs are. Want more detailed specifications? Download the latest Komatsu WH 609 specs data sheet on LECTURA Specs today!

    Technical specs - WH609 Komatsu

    Specification

    Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

    • Nominal load at COG 3.5 t
    • Standard tyres 405/70-24 PR14
    • Centre of gravity 500 mm
    • Transmission type W
    • Max. Reach horizontal 5,2 m
    • Capacity at full forward reach 1.32 t
    • Lifting height 9 m
    • Capacity at full lift height 1 t
    • Weight 8.66 t
    • Transport length 5.525 m
    • Transport width 2.37 m
    • Transport height 2.39 m
    • Travel speed 38 km/h
    • Engine manuf. Komatsu
    • Engine type SAA4D104E-1
    • Engine power 74 kW
    • max. climbing ability ###
    • Dimension lxwxh ###
    • Displacement ###
    • Revolutions at max torque ###
    • Max. torque ###
    • No. of cylinders ###
    • Cylinder bore x stroke ###
    • Emission level ###
    • Cab Position ###
    • Chassis Type ###
    • Levelling - Chassis ###
    • Stabilisers ###
    • Drive - 2W / 4W ###
    • Transmission Type ###
    • Engine Manufacturer ###
    • Engine Model ###
    • Aspiration ###
    • Rated Speed ###
    • Engine Output - Net ###
    • Tyre - Front Size ###
    • Tyre - Rear Size ###
    • Service Brake - Type ###
    • Service Brake - Location ###
    • Length - Front Of Carriage ###
    • Height - Over Cab ###
    • Width - Operating ###
    • Wheelbase ###
    • Ground Clearance ###
    • Width - Cab ###
    • Lift Height - Maximum ###
    • Reach - Maximum ###
    • Unstabilised Lift Height - With Maximum Capacity ###
    • Stabilised Lift Height - With Maximum Capacity ###
    • Turning Radius - Over Tyres ###
    • Breakout Force ###
    • Lift Capacity - Maximum ###
    • Lift Capacity - To Max Height ###
    • Lift Capacity - To Max Reach ###
    • Unstabilised Lift Capacity - Maximum ###
    • Unstabilised Lift Capacity - To Max Height ###
    • Unstabilised Lift Capacity - To Max Reach ###
    • Stabilised Lift Capacity - Maximum ###
    • Stabilised Lift Capacity - To Max Height ###
    • Stabilised Lift Capacity - To Max Reach ###
    • Fuel Tank ###
    • Number Of Boom Sections ###
    • Load Centre ###
    • Lift Capacity - Fork Maximum ###
    • Speed - Forward Maximum ###
    • Operating Weight ###

    All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulic and shovel

    Special equipment

    • Diesel particulate filter
    • StVZO Equipment
    • Inclination correction
    • Side displacement
