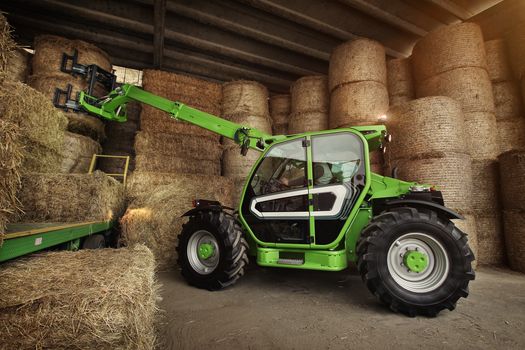

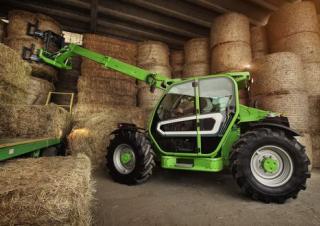

    Merlo TF 33.9 CS-120 Specifications & Technical Data (2016-2016)

    6,00/10 Rate this machine now!

    Manufactured by Merlo, this is the TF 33.9 CS-120 telehandler. Find and download detailed specs and data sheets for this machine h... Read more

    Manufactured by Merlo, this is the TF 33.9 CS-120 telehandler. Find and download detailed specs and data sheets for this machine here.

    This telehandler is built to provide up to 90kW or 120 horse power, delivered from its powerful Deutz engine to the 6.7t TF 33.9 CS-120 machine. The Merlo TF 33.9 CS-120 can be grouped in the medium sized machine segment in the telehandlers category. The TF 33.9 CS-120’s size is 2.24m x 4.3m x 2.25m. Standard tyres for this Merlo TF 33.9 CS-120 telehandler have a size of 405/70 R24 14 PR. Operators can travel by 40km/h with this telehandler. Max. Horizontal reach of this TF 33.9 CS-120 model from Merlo is 6,7m. With a center of gravity of 500mm, this model can lift a nominal load of 3.3t. The Merlo TF 33.9 CS-120 can lift 1.75t at a full lift height of 8.6m. The capacity of this model at full forward reach is 0.6t.

    Since 2016, this model has included StVZO Equipment. It has been sold without Side displacement, Diesel particulate filter and Inclination correction as of 2016. Take the original Merlo TF 33.9 CS-120 datasheet for even more detailed specifications and machine details. You can download it for free in German on LECTURA Specs.

    The newest version of this TF 33.9 CS-120 model is priced at between €86,000 and €110,000, with the production of this model stopped in 2016. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

    The TF 33.9 CS-120 Merlo can be compared to several models from other manufacturers. The closest telehandlers based on specification and pricing are the JCB 532-120, JCB 533-105 and New Holland LM 1333 turbo. The most commonly viewed Merlo models of this type on LECTURA Specs are the TF 50.8 T-120, TF 33.7-115 and TF 50.8 T-CS-156-CVTRONIC, and 56 other telehandlers, which currently range from 2.7t up to 12t are also available. Want more detailed specifications? Download the latest Merlo TF 33.9 CS-120 specs data sheet on LECTURA Specs today!

    Technical specs - TF 33.9 CS-120 Merlo

    Specification

    Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

    • Nominal load at COG 3.3 t
    • Standard tyres 405/70 R24 14 PR
    • Centre of gravity 500 mm
    • Transmission type HY
    • Max. Reach horizontal 6,7 m
    • Capacity at full forward reach 0.6 t
    • Lifting height 8.6 m
    • Capacity at full lift height 1.75 t
    • Weight 6.7 t
    • Transport length 4.3 m
    • Transport width 2.24 m
    • Transport height 2.25 m
    • Travel speed 40 km/h
    • max. climbing ability 45 %
    • Engine manuf. Deutz
    • Engine type TCD3.6 L4
    • Engine power 90 kW
    • Dimension lxwxh 701 x 592 x 790 mm
    • Displacement 3.6 l
    • Revolutions at max torque 1600 rpm
    • Max. torque 480 Nm
    • No. of cylinders 4
    • Cylinder bore x stroke 101 x 126 mm
    • Emission level III B

    All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulic and shovel

    Special equipment

    • Diesel particulate filter
    • StVZO Equipment
    • Inclination correction
    • Side displacement
