Panoramic P 36.10 Merlo Telehandler Specs & Dimensions (2007 - 2011)

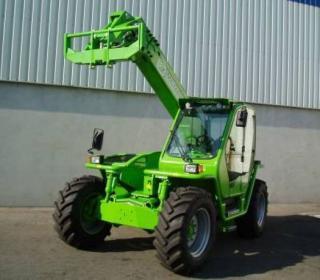

The Merlo Panoramic P 36.10 is a telehandler manufactured by Merlo from 2007 to 2011. It has a weight of 7.35 tons and a transport…

The Merlo Panoramic P 36.10 is a telehandler manufactured by Merlo from 2007 to 2011. It has a weight of 7.35 tons and a transport length of 4.335 meters. The telehandler has a nominal load at the center of gravity of 3.6 tons and a lifting height of 9.7 meters. It has a capacity of 0.6 tons at full forward reach and 3 tons at full lift height. The center of gravity is located at 500 millimeters. The telehandler has a travel speed of 20 km/h and a transport width of 2.23 meters. The transport height is 2.475 meters. It is equipped with inclination correction and side displacement as special equipment.

Telehandlers Merlo Panoramic P 36.10

Technical specs - Panoramic P 36.10 Merlo

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG
3.6 t
Model series
Panasonic
Centre of gravity
500 mm
Standard tyres
405/70-24
Max. Reach horizontal
6.3 m
Capacity at full forward reach
0.6 t
Lifting height
9.7 m
Capacity at full lift height
3 t
Weight
7.35 t
Transport length
4.335 m
Transport width
2.23 m
Transport height
2.475 m
Travel speed
20 km/h
Engine manuf.
Deutz
Engine type
TCD2012
Engine power
74.9 kW
Displacement
4.038 l
Revolutions at max torque
2100 rpm

More technical details, like: transmission type, max. climbing ability, drive system, voltage, traction motor, hoist motor, travel speed with / without load, hoisting with / without load, lowering with load, dimension lxwxh, max. torque, no. of cylinders...

More technical details, like: transmission type, max. climbing ability, drive system, voltage, traction motor, hoist motor, travel speed with / without load, hoisting with / without load, lowering with load, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level, cab position, chassis type, levelling - chassis, stabilisers, drive - 2w / 4w, transmission type, engine manufacturer, emission rating, aspiration, rated speed, engine output - gross, tyre - front size, tyre - rear size, tyre 2 - front size option, tyre 2 - rear size option, service brake - type, service brake - location, length - front of carriage, height - over cab, width - operating, wheelbase, ground clearance, width - cab, boom angle - maximum, lift height - maximum, reach - maximum, reach - at maximum lift height, reach - ground with maximum capacity, unstabilised lift height - with maximum capacity, turning radius - over tyres, lift capacity - maximum, lift capacity - to max height, lift capacity - to max reach, unstabilised lift capacity - maximum, unstabilised lift capacity - to max height, unstabilised lift capacity - to max reach, fuel tank, number of boom sections, load centre, lift capacity - fork maximum, speed - forward maximum, operating weight are available in the full technical specs.

All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulic and shovel

Special equipment

Diesel particulate filter
No
StVZO Equipment
No
Inclination correction
Yes
Side displacement
Yes

Download datasheets (PDF)
