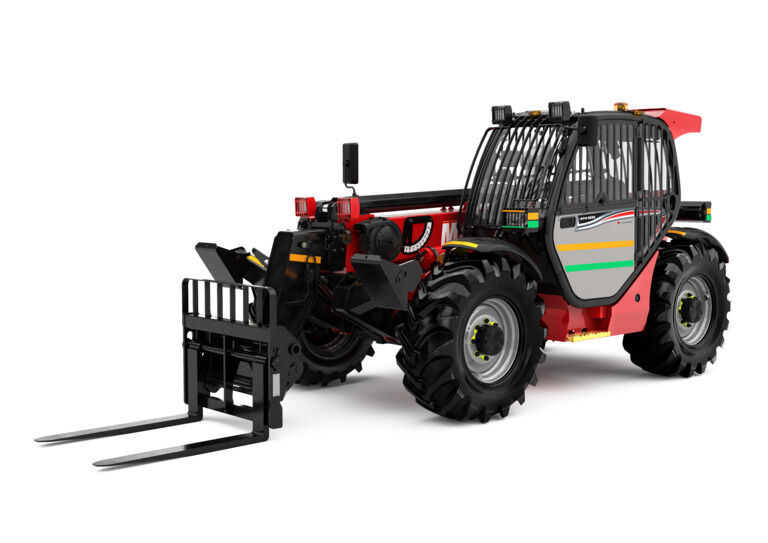

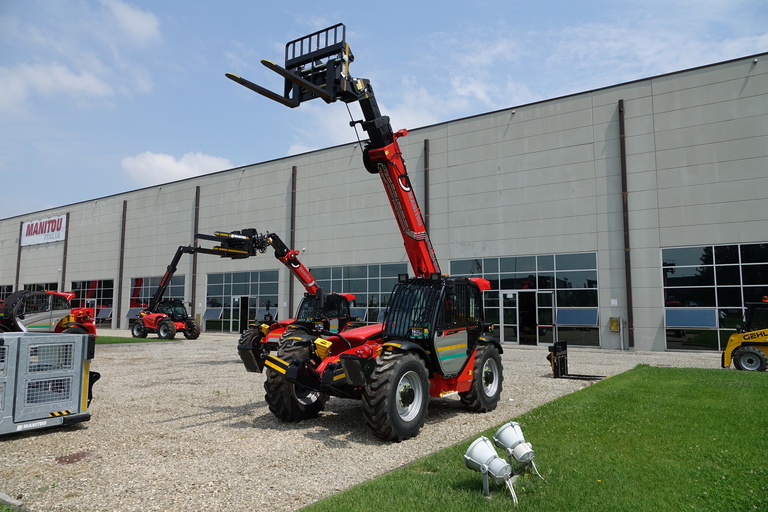

MT-X 1033 Mining Manitou Telehandler Specs & Dimensions (2022 - 2026)
.jpg)
.jpg)
.jpg)
.jpg)
Visit Manitou live at
Technical specs - MT-X 1033 Mining Manitou
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Nominal load at COG
- 3.3 t
- Model series
- MT
- Standard tyres
- Alliance 400/80 - 24 - 162A8
- Max. Reach horizontal
- 7.15 m
- Capacity at full forward reach
- 1 t
- Lifting height
- 9.98 m
- Capacity at full lift height
- 2.5 t
- Weight
- 7.745 t
- Transport length
- 4.93 m
- Transport width
- 2.25 m
- Transport height
- 2.3 m
- Travel speed
- 27 km/h
- Engine manuf.
- Perkins
- Engine type
- 1104D-44 TA
- Engine power
- 74.5 kW
- Displacement
- 4.4 l
- Revolutions at max torque
- 1400 rpm
- Max. torque
- 410 Nm
- No. of cylinders
- 4
- Emission level
- Stage IIIA
More technical details, like: centre of gravity, transmission type, max. climbing ability, drive system, voltage, traction motor, hoist motor, travel speed with / without load, hoisting with / without load, lowering with load, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.
All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulic and shovel
Special equipment
- Diesel particulate filter
-
No
- StVZO Equipment
-
No
- Inclination correction
-
No
- Side displacement
-
No
