Lectura specs Forklifts Telehandlers Telehandlers Liebherr Liebherr TL 436-7 specifications

Total Cost of Ownership for 3-4t Telehandlers

BUY (Annual Ownership Cost): 16 730.79 € RENTAL COST (Annual Rental Cost): 15 521.03 €.

Customize the calculation *Presented prices are sample calculations.

Provided by

All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulic and shovel

Download 250 detailed technical specs & competitive intelligence data for Liebherr TL 436-7

See 2 datasheets

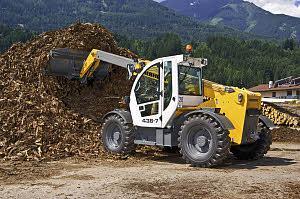

Technical specs - TL 436-7 Liebherr

Nominal load at COG 3.2 t
Standard tyres 405/70-24
Centre of gravity 500 mm
Transmission type HY
Max. Reach horizontal 4.1 m
Capacity at full forward reach 1.1 t
Lifting height 6.93 m
Capacity at full lift hight 2.8 t
Weight 7.06 t
Transport length 4.78 m
Transport width 2.34 m
Transport height 2.44 m
Travel speed 25 km/h
Engine manuf. Deutz
Engine type TCD3.6 L4
Engine power 74.4 kW
Displacement 3.6 l
Revolutions at max torque 2000 rpm
Emission level Tier 3 b
max. climbing ability ###
Engine power ###
Dimension lxwxh ###
Max. torque ###
No. of cylinders ###
Cylinder bore x stroke ###
Weight ###
Cab Position ###
Chassis Type ###
Levelling - Chassis ###
Stabilisers ###
Drive - 2W / 4W ###
Transmission Type ###
Attachment Quickhitch ###
Telematics Available ###
Engine Manufacturer ###
Engine Model ###
Emission Rating ###
Aspiration ###
Rated Speed ###
Engine Output - Gross ###
Torque ###
Tyre - Front Size ###
Tyre - Rear Size ###
Service Brake - Type ###
Service Brake - Location ###
Dimension Configuration ###
Length - Front Of Carriage ###
Height - Over Cab ###
Width - Operating ###
Wheelbase ###
Ground Clearance ###
Boom Angle - Maximum ###
Lift Height - Maximum ###
Reach - Maximum ###
Reach - At Maximum Lift Height ###
Reach - Ground With Maximum Capacity ###
Unstabilised Lift Height - With Maximum Capacity ###
Turning Radius - Over Tyres ###
Lift Capacity - Maximum ###
Lift Capacity - To Max Height ###
Lift Capacity - To Max Reach ###
Unstabilised Lift Capacity - Maximum ###
Unstabilised Lift Capacity - To Max Height ###
Unstabilised Lift Capacity - To Max Reach ###
Fuel Tank ###
Number Of Boom Sections ###
Load Centre ###
Lift Capacity - Fork Maximum ###
Raise Time - Boom ###
Extend Time - Boom ###
Speed - Forward Maximum ###
Speed - Reverse Maximum ###
Operating Weight ###

TL 436-7 Liebherr - Special equipment

  • Diesel particulate filter
  • StVZO Equipment
  • Inclination correction
  • Side displacement
