TLT35D JCB Telehandler Specs & Dimensions (2009 - 2016)

The JCB TLT35D telehandler, manufactured from 2009 to 2016, weighs 5.1 tons. It has a maximum horizontal reach of 2.43 meters and …

The JCB TLT35D telehandler, manufactured from 2009 to 2016, weighs 5.1 tons. It has a maximum horizontal reach of 2.43 meters and a lifting height of 4.4 meters. The nominal load at the center of gravity is 3.5 tons, while the capacity at full forward reach is 1.7 tons. The telehandler has a center of gravity at 500 mm. It can climb slopes with a maximum gradient of 25 percent. The capacity at full lift height is 3 tons. The travel speed with or without load is 20 km/h.

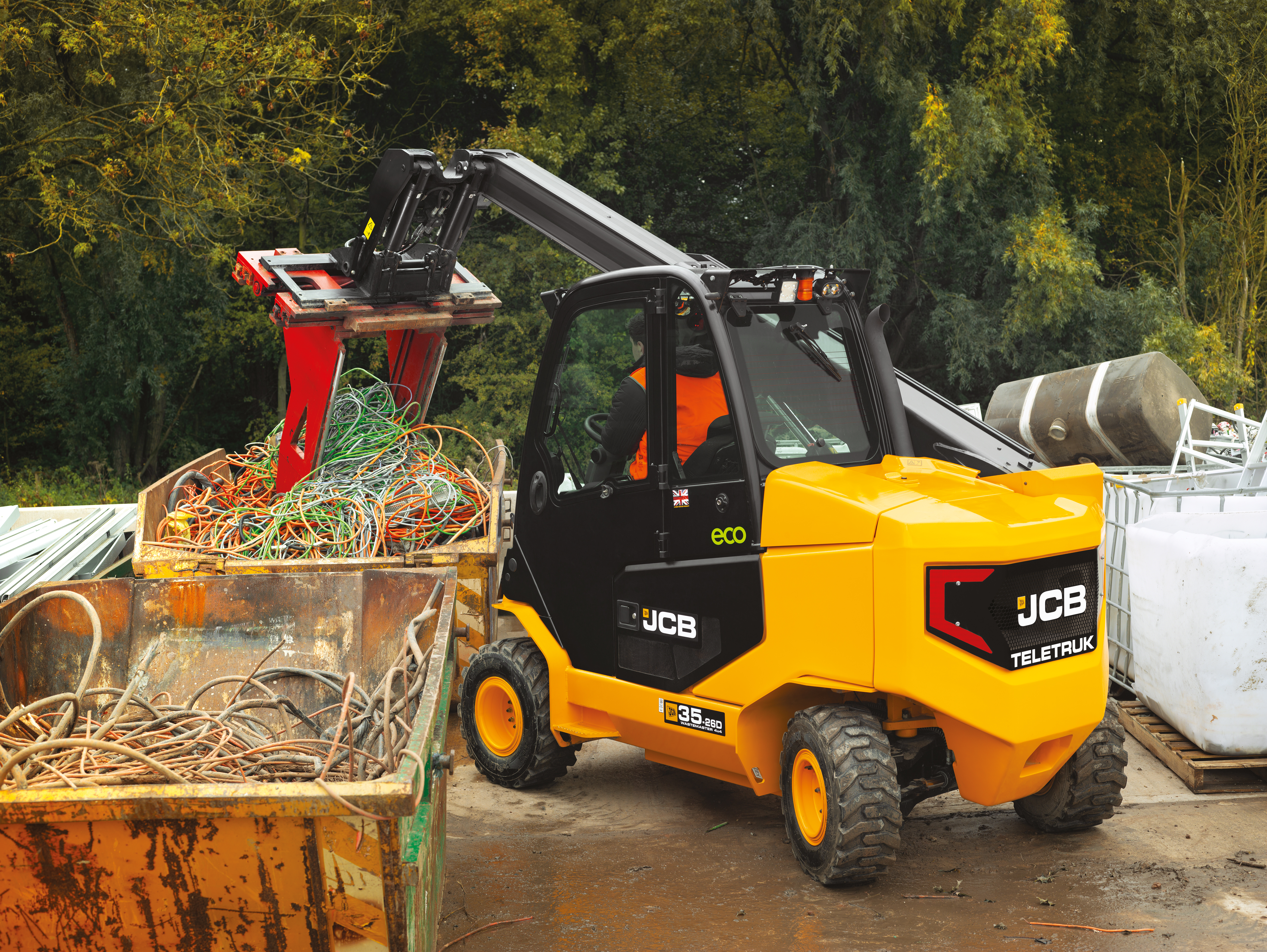

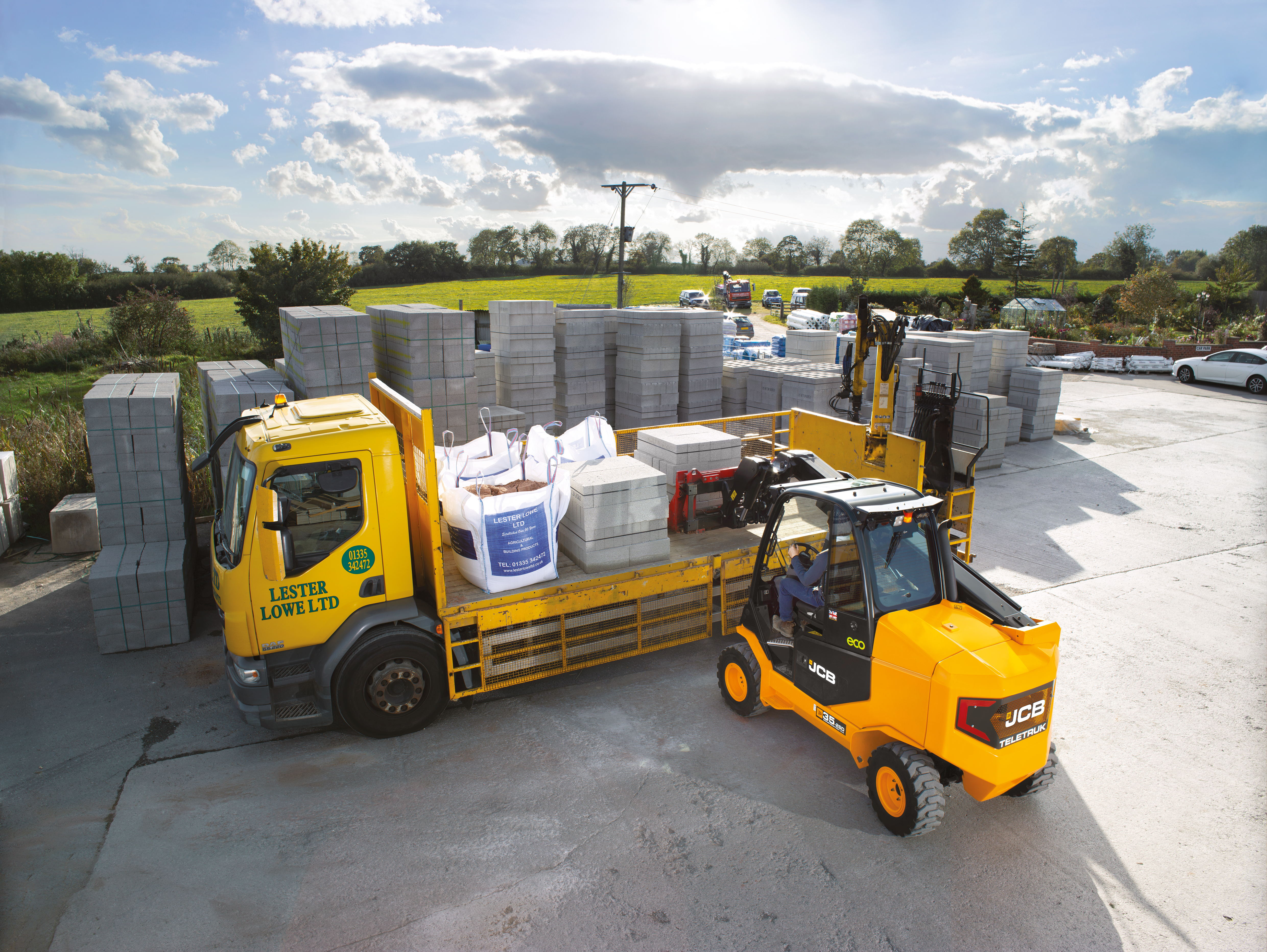

Telehandlers JCB TLT35D
Telehandlers JCB TLT35D
Telehandlers JCB TLT35D
Telehandlers JCB TLT35D
Telehandlers JCB TLT35D
Telehandlers JCB TLT35D
Telehandlers JCB TLT35D
Telehandlers JCB TLT35D

Visit JCB live at

Technical specs - TLT35D JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG
3.5 t
Model series
TLT
Centre of gravity
500 mm
Standard tyres
2xSE/2SE
Transmission type
HY
Max. Reach horizontal
2.43 m
Capacity at full forward reach
1.7 t
Lifting height
4.4 m
Capacity at full lift height
3 t
Weight
5.1 t
max. climbing ability
25 %
Travel speed with / without load
20 km/h
Engine manuf.
Deutz
Engine type
2011 L04W
Engine power
45 kW

More technical details, like: transport length, transport width, transport height, travel speed, drive system, voltage, traction motor, hoist motor, hoisting with / without load, lowering with load, dimension lxwxh, displacement...

More technical details, like: transport length, transport width, transport height, travel speed, drive system, voltage, traction motor, hoist motor, hoisting with / without load, lowering with load, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level, cab position, chassis type, levelling - chassis, stabilisers, drive - 2w / 4w, transmission type, attachment quickhitch, telematics available, platform, engine manufacturer, engine model, emission rating, aspiration, rated speed, engine output - gross, torque, tyre - front size, tyre - rear size, service brake - type, length - front of carriage, height - over cab, width - operating, wheelbase, ground clearance, lift height - maximum, reach - maximum, reach - at maximum lift height, reach - ground with maximum capacity, unstabilised lift height - with maximum capacity, turning radius - over tyres, lift capacity - maximum, lift capacity - to max height, lift capacity - to max reach, unstabilised lift capacity - maximum, unstabilised lift capacity - to max height, unstabilised lift capacity - to max reach, number of boom sections, load centre, lift capacity - fork maximum, speed - forward maximum, operating weight are available in the full technical specs.

All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulic and shovel

Special equipment

Diesel particulate filter
No
StVZO Equipment
No
Inclination correction
No
Side displacement
No
