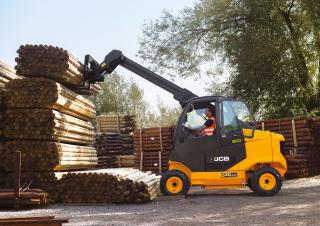

TLT30D JCB Telehandler Specs & Dimensions (2009 - 2016)

Name: JCB TLT30D Telehandlers
Brand: JCB

The JCB TLT30D telehandler, manufactured from 2009 to 2016, weighs 4.9 tons. It has a maximum horizontal reach of 2.39 meters an…

The JCB TLT30D telehandler, manufactured from 2009 to 2016, weighs 4.9 tons. It has a maximum horizontal reach of 2.39 meters and a lifting height of 4.1 meters. The nominal load at the center of gravity is 3 tons, while the capacity at full forward reach is 1.5 tons. The center of gravity is located at 500 millimeters. It has a maximum climbing ability of 25 percent. The capacity at full lift height is 3 tons. The travel speed with load is 20 km/h, and the travel speed without load is also 20 km/h.

TLT30D

Years of manufacture: 2009—2016

Data sheet
Buy & Rent
Spare parts
Transport
News

Technical specs - TLT30D JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG: 3 t

Model series: TLT

Centre of gravity: 500 mm

Standard tyres: 2xSE/2SE

Transmission type: HY

Max. Reach horizontal: 2.39 m

Capacity at full forward reach: 1.5 t

Lifting height: 4.1 m

Capacity at full lift height: 3 t

Weight: 4.9 t

max. climbing ability: 25 %

Travel speed with / without load: 20 km/h

Engine manuf.: Perkins

Engine type: D 404-22

Engine power: 36 kW

More technical details, like: transport length, transport width, transport height, travel speed, drive system, voltage, traction motor, hoist motor, hoisting with / without load, lowering with load, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level, cab position, chassis type, levelling - chassis, stabilisers, drive - 2w / 4w, transmission type, attachment quickhitch, telematics available, platform, engine manufacturer, engine model, emission rating, aspiration, rated speed, engine output - gross, tyre - front size, tyre - rear size, service brake - type, length - front of carriage, height - over cab, width - operating, wheelbase, ground clearance, lift height - maximum, reach - maximum, reach - at maximum lift height, reach - ground with maximum capacity, unstabilised lift height - with maximum capacity, turning radius - over tyres, lift capacity - maximum, lift capacity - to max height, lift capacity - to max reach, unstabilised lift capacity - maximum, unstabilised lift capacity - to max height, unstabilised lift capacity - to max reach, number of boom sections, load centre, lift capacity - fork maximum, speed - forward maximum, operating weight are available in the full technical specs.

All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulic and shovel

Special equipment

Diesel particulate filter: No
StVZO Equipment: No
Inclination correction: No
Side displacement: No
