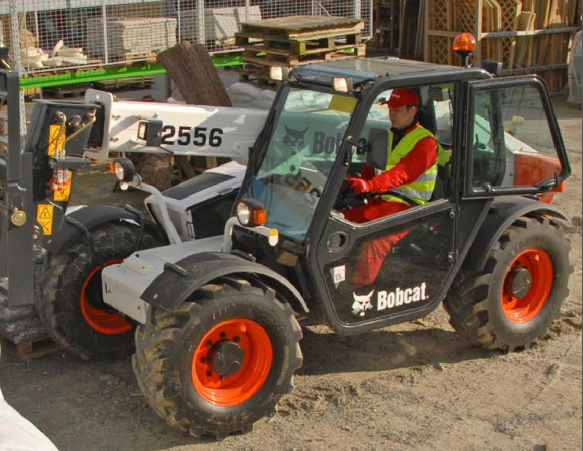

T 2556 Bobcat Telehandler Specs & Dimensions (2000 - 2003)

The Bobcat T 2556 is a telehandler manufactured by Bobcat from 2000 to 2003. It weighs 4.92 tons and has a transport length of 4.4…

The Bobcat T 2556 is a telehandler manufactured by Bobcat from 2000 to 2003. It weighs 4.92 tons and has a transport length of 4.408 meters. The telehandler has a nominal load at the center of gravity of 2.5 tons and a lifting height of 5.56 meters. It has a capacity of 1.1 tons at full forward reach and a capacity of 2.5 tons at full lift height. The center of gravity is located at 500 millimeters. The telehandler has a travel speed of 30 km/h and a transport width of 1.984 meters. The transport height is 2.096 meters.

Telehandlers Bobcat T 2556

Visit Bobcat live at

Technical specs - T 2556 Bobcat

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG
2.5 t
Centre of gravity
500 mm
Standard tyres
400/70x20
Transmission type
HY
Max. Reach horizontal
3.05 m
Capacity at full forward reach
1.1 t
Lifting height
5.56 m
Capacity at full lift height
2.5 t
Weight
4.92 t
Transport length
4.408 m
Transport width
1.984 m
Transport height
2.096 m
Travel speed
30 km/h
Engine manuf.
Perkins
Engine type
1004.42
Engine power
60 kW

More technical details, like: model series, max. climbing ability, drive system, voltage, traction motor, hoist motor, travel speed with / without load, hoisting with / without load, lowering with load, dimension lxwxh, displacement, revolutions at max torque...

More technical details, like: model series, max. climbing ability, drive system, voltage, traction motor, hoist motor, travel speed with / without load, hoisting with / without load, lowering with load, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level, cab position, chassis type, levelling - chassis, stabilisers, drive - 2w / 4w, transmission type, engine manufacturer, engine model, aspiration, rated speed, engine output - net, tyre - front size, tyre - rear size, tyre 2 - front size option, tyre 2 - rear size option, service brake - type, service brake - location, length - front of carriage, height - over cab, width - operating, wheelbase, ground clearance, width - cab, lift height - maximum, reach - maximum, reach - at maximum lift height, unstabilised lift height - with maximum capacity, turning radius - over tyres, breakout force, lift capacity - maximum, lift capacity - to max height, lift capacity - to max reach, unstabilised lift capacity - maximum, unstabilised lift capacity - to max height, unstabilised lift capacity - to max reach, fuel tank, number of boom sections, load centre, lift capacity - fork maximum, raise time - boom, extend time - boom, speed - forward maximum, operating weight are available in the full technical specs.

All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulic and shovel

Special equipment

Diesel particulate filter
No
StVZO Equipment
No
Inclination correction
No
Side displacement
No

Download datasheets (PDF)
