    Technical specs - 540P180 JCB

    Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

    Nominal load at COG 4 t
    Standard tyres 15.5-25
    Centre of gravity 500 mm
    Transmission type W
    Max. Reach horizontal 13.34 m
    Capacity at full forward reach 0.55 t
    Lifting height 17.51 m
    Capacity at full lift hight 2.5 t
    Weight 11.38 t
    Transport length 6.27 m
    Transport width 2.35 m
    Transport height 2.59 m
    Travel speed 20 km/h
    Engine manuf. JCB
    Engine type EcoMAX 444 TCA
    Engine power 55 kW
    Engine power 74 HP
    Displacement 4.4 l
    Revolutions at max torque 1300 rpm
    Max. torque 400 Nm
    No. of cylinders 4
    Cylinder bore x stroke 103x132 mm
    Emission level Tier 4i/Stage IIIB
    max. climbing ability ###
    Dimension lxwxh ###
    Weight ###

    All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulic and shovel

    540P180 JCB - Special equipment

    • Diesel particulate filter
    • StVZO Equipment
    • Inclination correction
    • Side displacement

    RAVAS iForks-32 weight scaling solution for your JCB 540P180

    RAVAS iForks-32

    Successful RAVAS scale forks

    Fit iForks for your JCB 540P180 and realise immediate cost savings

    Functions:

    Gross/net weighing

    Totalling with sequence number

    Weight data transfer to smart phone, tablet, handheld and WMS/ERP system

    Benefits:

    Installation within 5 minutes

    Completely wireless with digital calibration

    More information

    Download data sheets - JCB 540P180

    X

    What do you think about this machine?


    Compare JCB 540P180 with other models

    Press 1 image

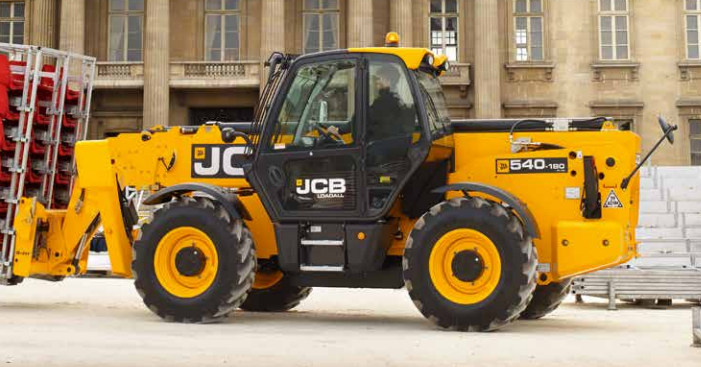

    JCB 540P180
