540-170 JCB Telehandler Specs & Dimensions (2001 - 2004)

Model rating: 10,00 / 10

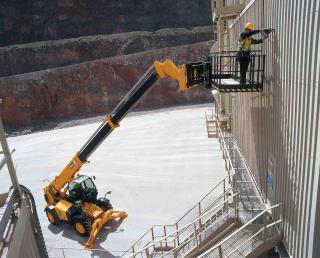

The JCB 540-170 is a telehandler manufactured by JCB from 2001 to 2004. It has a weight of 12.2 tons and a transport length of 6.3…

The JCB 540-170 is a telehandler manufactured by JCB from 2001 to 2004. It has a weight of 12.2 tons and a transport length of 6.36 meters. The telehandler has a nominal load at the center of gravity of 4 tons and a lifting height of 16.7 meters. It has a capacity of 1.5 tons at full forward reach and a center of gravity at 500 millimeters. The travel speed of the telehandler is 30 kilometers per hour. It has a capacity of 2.5 tons at full lift height. The transport width of the telehandler is 2.44 meters and the transport height is 2.69 meters.

540-170

Years of manufacture: 2001—2004

Data sheet
Buy & Rent
Spare parts
Transport
News

Technical specs - 540-170 JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG: 4 t

Model series: 540

Centre of gravity: 500 mm

Standard tyres: 15.5-25

Transmission type: W

Max. Reach horizontal: 12.5 m

Capacity at full forward reach: 1.5 t

Lifting height: 16.7 m

Capacity at full lift height: 2.5 t

Weight: 12.2 t

Transport length: 6.36 m

Transport width: 2.44 m

Transport height: 2.69 m

Travel speed: 30 km/h

Engine manuf.: Perkins

Engine type: 1004T

Engine power: 74.6 kW

More technical details, like: max. climbing ability, drive system, voltage, traction motor, hoist motor, travel speed with / without load, hoisting with / without load, lowering with load, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level, cab position, chassis type, levelling - chassis, stabilisers, drive - 2w / 4w, transmission type, attachment quickhitch, telematics available, platform, engine manufacturer, engine model, emission rating, aspiration, rated speed, engine output - gross, torque, tyre - front size, tyre - rear size, tyre 2 - front size option, tyre 2 - rear size option, service brake - type, service brake - location, length - front of carriage, height - over cab, width - operating, wheelbase, ground clearance, width - cab, width - stabiliser spread, boom angle - maximum, lift height - maximum, reach - maximum, reach - at maximum lift height, reach - ground with maximum capacity, unstabilised lift height - with maximum capacity, stabilised lift height - with maximum capacity, turning radius - over tyres, lift capacity - maximum, lift capacity - to max height, lift capacity - to max reach, unstabilised lift capacity - maximum, unstabilised lift capacity - to max height, unstabilised lift capacity - to max reach, stabilised lift capacity - maximum, stabilised lift capacity - to max height, stabilised lift capacity - to max reach, fuel tank, number of boom sections, load centre, lift capacity - fork maximum, raise time - boom, extend time - boom, speed - forward maximum, speed - reverse maximum, operating weight are available in the full technical specs.

All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulic and shovel

Special equipment

Diesel particulate filter: No
StVZO Equipment: No
Inclination correction: No
Side displacement: No

Download datasheets (PDF)

540-170 JCB Specification for Europe (DE)
