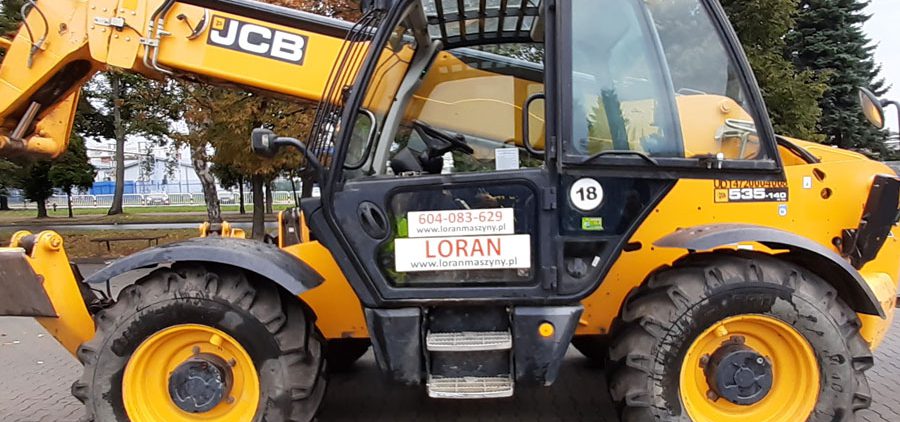

535V140 JCB Telehandler Specs & Dimensions (2018 - 2020)
.jpg)
Visit JCB live at
Technical specs - 535V140 JCB
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Nominal load at COG
- 3.5 t
- Model series
- 535
- Centre of gravity
- 500 mm
- Standard tyres
- 15.5-25
- Transmission type
- W
- Max. Reach horizontal
- 9.6 m
- Capacity at full forward reach
- 1.25 t
- Lifting height
- 13.8 m
- Capacity at full lift height
- 3 t
- Weight
- 10.88 t
- Transport length
- 6.23 m
- Transport width
- 2.35 m
- Transport height
- 2.59 m
- Travel speed
- 20 km/h
- Engine manuf.
- JCB
- Engine type
- EcoMax
- Engine power
- 55 kW
- Displacement
- 4.4 l
- Max. torque
- 400 Nm
- No. of cylinders
- 4
- Emission level
- III B
More technical details, like: max. climbing ability, drive system, voltage, traction motor, hoist motor, travel speed with / without load, hoisting with / without load, lowering with load, dimension lxwxh, revolutions at max torque, cylinder bore x stroke are available in the full technical specs.
All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulic and shovel
Special equipment
- Diesel particulate filter
-
No
- StVZO Equipment
-
Yes
- Inclination correction
-
Yes
- Side displacement
-
No
