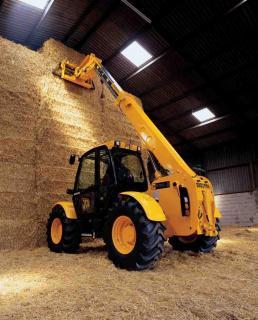

530-70 JCB Telehandler Specs & Dimensions (1997 - 2004)

Model rating
7,00 / 10

The JCB 530-70 telehandler, manufactured from 1997 to 2004, has a weight of 6.8 tons. It can handle a nominal load of 3 tons at th…

The JCB 530-70 telehandler, manufactured from 1997 to 2004, has a weight of 6.8 tons. It can handle a nominal load of 3 tons at the center of gravity and has a lifting height of 7 meters. The capacity at full forward reach is 1.25 tons, and the center of gravity is located at 500 mm. Additionally, it can lift a maximum capacity of 2.4 tons at its full lift height.

Telehandlers JCB 530-70

Visit JCB live at

Technical specs - 530-70 JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG
3 t
Model series
530
Centre of gravity
500 mm
Standard tyres
15.5/80-24
Transmission type
W
Max. Reach horizontal
3.7 m
Capacity at full forward reach
1.25 t
Lifting height
7 m
Capacity at full lift height
2.4 t
Weight
6.8 t
Engine manuf.
Perkins
Engine type
1004
Engine power
79 kW

More technical details, like: transport length, transport width, transport height, travel speed, max. climbing ability, drive system, voltage, traction motor, hoist motor, travel speed with / without load, hoisting with / without load, lowering with load...

More technical details, like: transport length, transport width, transport height, travel speed, max. climbing ability, drive system, voltage, traction motor, hoist motor, travel speed with / without load, hoisting with / without load, lowering with load, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level, cab position, chassis type, levelling - chassis, stabilisers, drive - 2w / 4w, transmission type, telematics available, platform, engine manufacturer, engine model, aspiration, rated speed, engine output - gross, torque, tyre - front size, tyre - rear size, service brake - type, dimension configuration, length - front of carriage, height - over cab, width - operating, wheelbase, ground clearance, width - cab, lift height - maximum, reach - maximum, unstabilised lift height - with maximum capacity, turning radius - over tyres, lift capacity - maximum, lift capacity - to max height, lift capacity - to max reach, unstabilised lift capacity - maximum, unstabilised lift capacity - to max height, unstabilised lift capacity - to max reach, fuel tank, number of boom sections, load centre, lift capacity - fork maximum, raise time - boom, extend time - boom, speed - forward maximum, operating weight are available in the full technical specs.

All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulic and shovel

Special equipment

Diesel particulate filter
No
StVZO Equipment
No
Inclination correction
No
Side displacement
No
