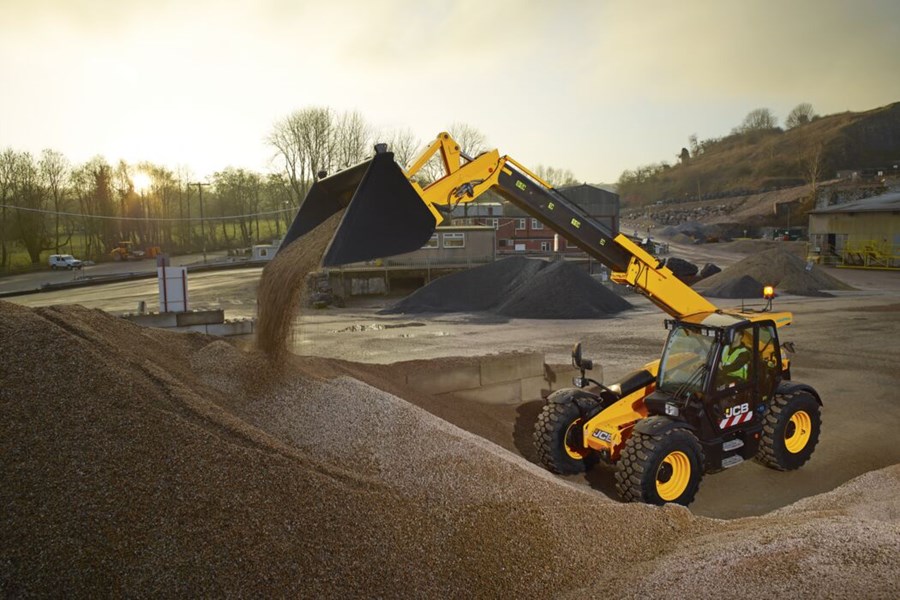

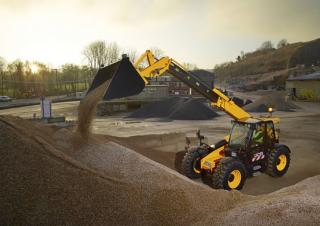

JCB 509-23TC
- Nominal load at COG:
- 4.1 t
- Model series:
- 509
- Standard tyres:
- 15.5/80-24
- Lifting height:
- 7 m
509-23TC JCB Telehandler Specs & Dimensions (2019 - 2026)
Technical specs - 509-23TC JCB
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Nominal load at COG
- 4.1 t
- Model series
- 509
- Standard tyres
- 15.5/80-24
- Lifting height
- 7 m
- Capacity at full lift height
- 1.54 t
- Weight
- 7.85 t
- Transport length
- 4.99 m
- Transport width
- 2.23 m
- Transport height
- 2.49 m
- Travel speed
- 32 km/h
- Engine manuf.
- JCB
- Engine type
- n/a
- Engine power
- 81 kW
- Displacement
- 4.4 l
- Revolutions at max torque
- 1300 rpm
- Max. torque
- 516 Nm
- No. of cylinders
- 4
- Cylinder bore x stroke
- 103x132 mm
- Emission level
- Tier 4
More technical details, like: centre of gravity, transmission type, max. reach horizontal, capacity at full forward reach, max. climbing ability, drive system, voltage, traction motor, hoist motor, travel speed with / without load, hoisting with / without load, lowering with load, dimension lxwxh are available in the full technical specs.
All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulic and shovel
Special equipment
- Diesel particulate filter
-
No
- StVZO Equipment
-
Yes
- Inclination correction
-
No
- Side displacement
-
No
