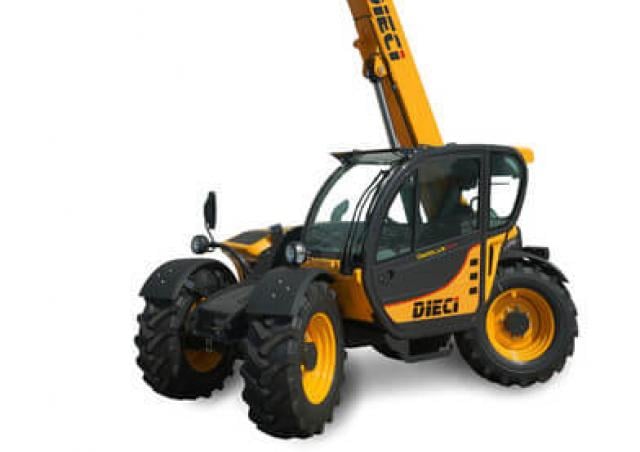

Dedalus 32.6 Dieci Telehandler Specs & Dimensions (2015 - 2017)

Name: Dieci Dedalus 32.6 Telehandlers
Brand: Dieci

The Dieci Dedalus 32.6 is a telehandler manufactured from 2015 to 2017. It weighs 5.9 tons and has a transport length of 4.495 met…

The Dieci Dedalus 32.6 is a telehandler manufactured from 2015 to 2017. It weighs 5.9 tons and has a transport length of 4.495 meters. The telehandler has a nominal load of 3.2 tons at the center of gravity, and it can lift loads up to 6 meters in height. At full forward reach, it has a capacity of 1.26 tons, and at full lift height, it can handle loads up to 2.6 tons. The telehandler has a transport width of 2 meters and a transport height of 2.28 meters.

Dedalus 32.6

Years of manufacture: 2015—2017

Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - Dedalus 32.6 Dieci

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG: 3.2 t

Model series: Dedalus

Centre of gravity: 500 mm

Standard tyres: 405/70x20

Transmission type: Hy

Max. Reach horizontal: 3.3 m

Capacity at full forward reach: 1.26 t

Lifting height: 6 m

Capacity at full lift height: 2.6 t

Weight: 5.9 t

Transport length: 4.495 m

Transport width: 2 m

Transport height: 2.28 m

Travel speed: 35 km/h

max. climbing ability: 40 %

Engine manuf.: Kubota

Engine type: V3800CR-TE 4

Engine power: 74.5 kW

More technical details, like: drive system, voltage, traction motor, hoist motor, travel speed with / without load, hoisting with / without load, lowering with load, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level, cab position, chassis type, stabilisers, drive - 2w / 4w, transmission type, telematics available, engine manufacturer, emission rating, aspiration, rated speed, engine output - net, tyre - front size, tyre 2 - front size option, tyre 3 - front size option, service brake - type, service brake - location, dimension configuration, length - front of carriage, height - over cab, width - operating, wheelbase, ground clearance, width - cab, boom angle - maximum, lift height - maximum, reach - maximum, reach - at maximum lift height, reach - ground with maximum capacity, unstabilised lift height - with maximum capacity, turning radius - over tyres, breakout force, lift capacity - maximum, lift capacity - to max height, lift capacity - to max reach, unstabilised lift capacity - maximum, unstabilised lift capacity - to max height, unstabilised lift capacity - to max reach, fuel tank, number of boom sections, load centre, lift capacity - fork maximum, raise time - boom, extend time - boom, speed - forward maximum, speed - reverse maximum, operating weight are available in the full technical specs.

All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulic and shovel

Special equipment

Diesel particulate filter: No
StVZO Equipment: No
Inclination correction: No
Side displacement: No
