T 3571 L Bobcat Telehandler Specs & Dimensions (2004 - 2011)

Model rating
10,00 / 10

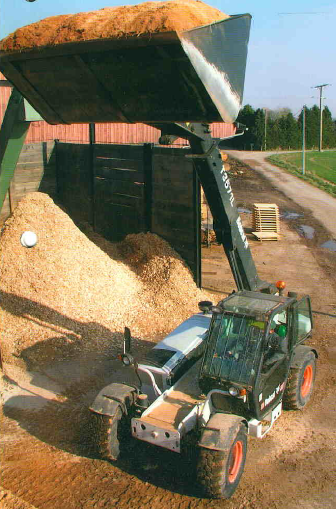

The Bobcat T 3571 L is a telehandler manufactured by Bobcat from 2004 to 2011. It has a weight of 6.94 tons and a transport length…

The Bobcat T 3571 L is a telehandler manufactured by Bobcat from 2004 to 2011. It has a weight of 6.94 tons and a transport length of 5.254 meters. The maximum horizontal reach is 4.06 meters, and it can lift a nominal load of 3.5 tons at the center of gravity. The lifting height is 7.1 meters, and it has a capacity of 1.35 tons at full forward reach. The center of gravity is located at 500 millimeters. It has a travel speed of 30 km/h and a capacity of 3 tons at full lift height. The transport width is 2.216 meters, and the transport height is 2.523 meters.

Telehandlers Bobcat T 3571 L

Visit Bobcat live at

Technical specs - T 3571 L Bobcat

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG
3.5 t
Model series
R
Centre of gravity
500 mm
Standard tyres
400/70x20
Transmission type
HY
Max. Reach horizontal
4.06 m
Capacity at full forward reach
1.35 t
Lifting height
7.1 m
Capacity at full lift height
3 t
Weight
6.94 t
Transport length
5.254 m
Transport width
2.216 m
Transport height
2.523 m
Travel speed
30 km/h
Engine manuf.
Perkins
Engine type
1104C-44T
Engine power
74.4 kW
Displacement
4.4 l
Revolutions at max torque
2200 rpm

More technical details, like: max. climbing ability, drive system, voltage, traction motor, hoist motor, travel speed with / without load, hoisting with / without load, lowering with load, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke...

More technical details, like: max. climbing ability, drive system, voltage, traction motor, hoist motor, travel speed with / without load, hoisting with / without load, lowering with load, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level, cab position, chassis type, levelling - chassis, stabilisers, drive - 2w / 4w, transmission type, engine manufacturer, engine model, aspiration, rated speed, engine output - net, tyre - front size, tyre - rear size, tyre 2 - front size option, tyre 2 - rear size option, service brake - type, service brake - location, length - front of carriage, height - over cab, width - operating, wheelbase, ground clearance, width - cab, lift height - maximum, reach - maximum, reach - at maximum lift height, unstabilised lift height - with maximum capacity, turning radius - over tyres, breakout force, lift capacity - maximum, lift capacity - to max height, lift capacity - to max reach, unstabilised lift capacity - maximum, unstabilised lift capacity - to max height, unstabilised lift capacity - to max reach, fuel tank, number of boom sections, load centre, lift capacity - fork maximum, raise time - boom, extend time - boom, speed - forward maximum, operating weight are available in the full technical specs.

All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulic and shovel

Special equipment

Diesel particulate filter
No
StVZO Equipment
No
Inclination correction
No
Side displacement
No

Download datasheets (PDF)
