Lectura specs Forklifts LPG Forklifts LPG Forklifts Yale Yale GP030VX specifications

L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulics with Simplex mast (3,3m up to 10t • 5m > 10t load capacity)

Download 250 detailed technical specs & competitive intelligence data for Yale GP030VX

See 1 datasheet

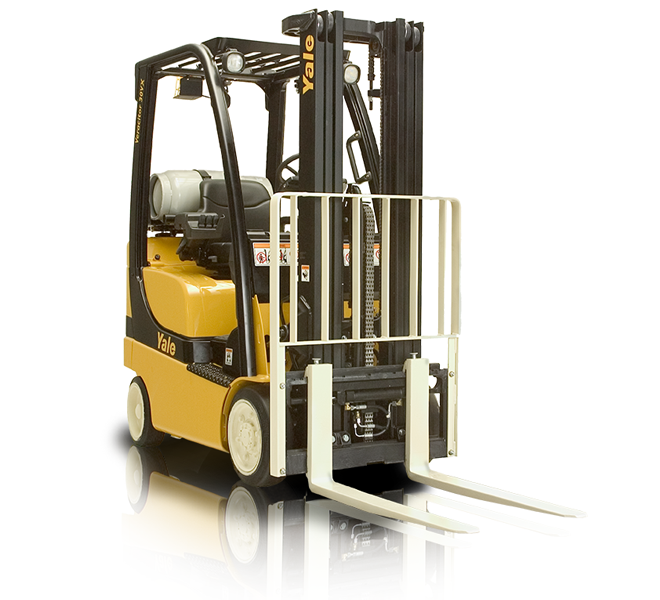

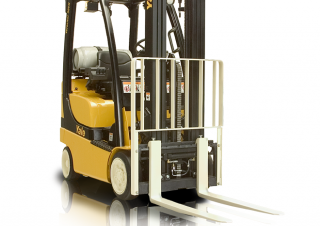

GP030VX Yale - Technical specs

Nominal load at COG 1,36 t
Standard tyres 2x/2
Centre of gravity 610 mm
Weight 4,25 t
Total width 1070 mm
Construction height 2125 mm
Turning radius 1.955 m
Lifting height 3.232 m
Travel speed with / without load 21,1/21,5 km/h
Hoisting with / without load 0,58/0,60 m/s
Lowering with load 0,51/0,47 m/s
max. climbing ability 28/30 %
Engine manuf. PSI
Engine type 2.0L
Engine power 33 kW
Engine power 44 HP
Revolutions at max torque 1300 rpm
Transmission type ###
Dimension lxwxh ###
Displacement ###
Max. torque ###
No. of cylinders ###
Cylinder bore x stroke ###
Weight ###
Emission level ###

Download specifications and technical datasheets for Yale GP030VX
