Caterpillar 2C5000
- Nominal load at COG:
- 2.5 t
- Centre of gravity:
- 500 mm
- Standard tyres:
- Front: 21 x 7 x 15 / Rear: 16 x 6 x 10.5
- Weight:
- 3.68 t

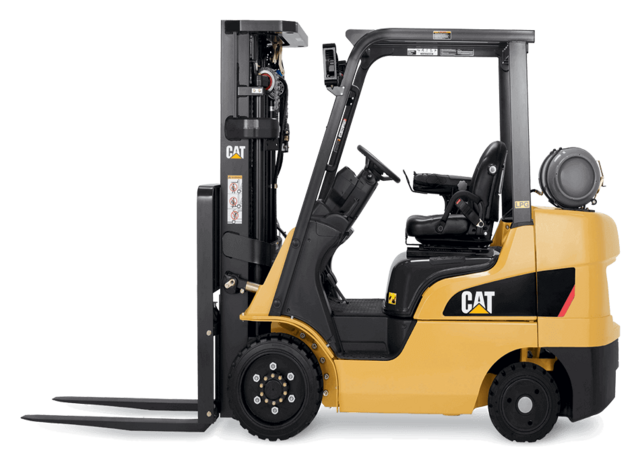

2C5000 Caterpillar LPG Forklift Specs & Dimensions (2021 - 2026)
Technical specs - 2C5000 Caterpillar
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Nominal load at COG
- 2.5 t
- Centre of gravity
- 500 mm
- Standard tyres
- Front: 21 x 7 x 15 / Rear: 16 x 6 x 10.5
- Weight
- 3.68 t
- Total width
- 1060 mm
- Construction height
- 2070 mm
- Turning radius
- 2.02 m
- Lifting height
- 3.34 m
- Travel speed with / without load
- 17.5/18.0 km/h
- Hoisting with / without load
- 0.64/0.66 m/s
- Lowering with load
- 0.5 m/s
- max. climbing ability
- 43 %
- Model series
- C
- Engine manuf.
- N/A
- Engine type
- GK25E
- Engine power
- 46.9 kW
- Displacement
- 2.488 l
- Revolutions at max torque
- 2700 rpm
- Max. torque
- 188/1600 Nm
- No. of cylinders
- 4
More technical details, like: transmission type, dimension lxwxh, cylinder bore x stroke, emission level are available in the full technical specs.
L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulics with Simplex mast (3,3m up to 10t • 5m > 10t load capacity)
