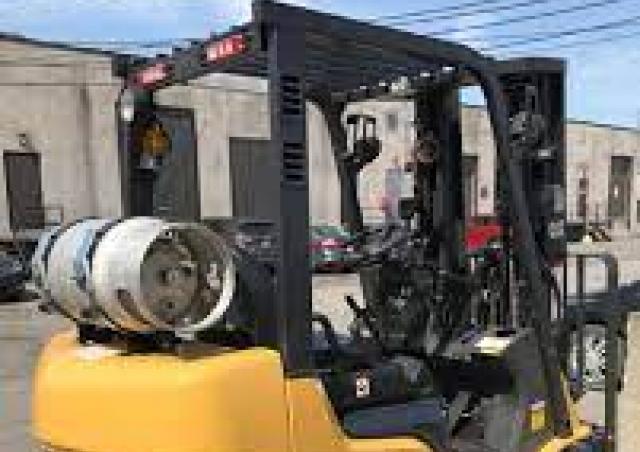

Caterpillar C5000 LPG forklift specs (2007 - 2017)

Nominal load at COG: 2.8t – Centre of gravity: 500mm – Weight: 3.7t – Total width: 1065mm – Construction height: 2110mm – Turning …

Nominal load at COG: 2.8t – Centre of gravity: 500mm – Weight: 3.7t – Total width: 1065mm – Construction height: 2110mm – Turning radius: 2.02m

Caterpillar is the manufacturer of the C5000 LPG forklift. The production years for this model are (2007 - 2017). Find here detailed specs for C5000 LPG powered lift truck - in a form of table chart below and downloadable datasheet. Explore also the other forklift models produced by Caterpillar.

Technical specs - C5000 Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG
2.8 t
Centre of gravity
500 mm
Weight
3.7 t
Total width
1065 mm
Construction height
2110 mm
Turning radius
2.02 m
Lifting height
3.345 m
Travel speed with / without load
17.5/18.0 km/h
Hoisting with / without load
0.64/0.65 m/s
Lowering with load
0.5 m/s
max. climbing ability
34.8 %
Engine manuf.
N/A
Engine type
K25
Engine power
63 kW
Revolutions at max torque
1600 rpm
Max. torque
188 Nm

More technical details, like: standard tyres, transmission type, model series, dimension lxwxh, displacement, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulics with Simplex mast (3,3m up to 10t • 5m > 10t load capacity)
