GLP80SVX Base Yale LPG Forklift Specs & Dimensions (2020 - 2026)

Nominal load at COG: 8t – Centre of gravity: 600mm – Standard tyres: L 4x/2 – Transmission type: W – Weight: 11.47t – Total width:…

Nominal load at COG: 8t – Centre of gravity: 600mm – Standard tyres: L 4x/2 – Transmission type: W – Weight: 11.47t – Total width: 2082mm

Yale is the manufacturer of the GLP80SVX Base LPG forklift. The production years for this model are (2020 - 2026). Find here detailed specs for GLP80SVX Base LPG powered lift truck - in a form of table chart below and downloadable datasheet. Explore also the other forklift models produced by Yale.

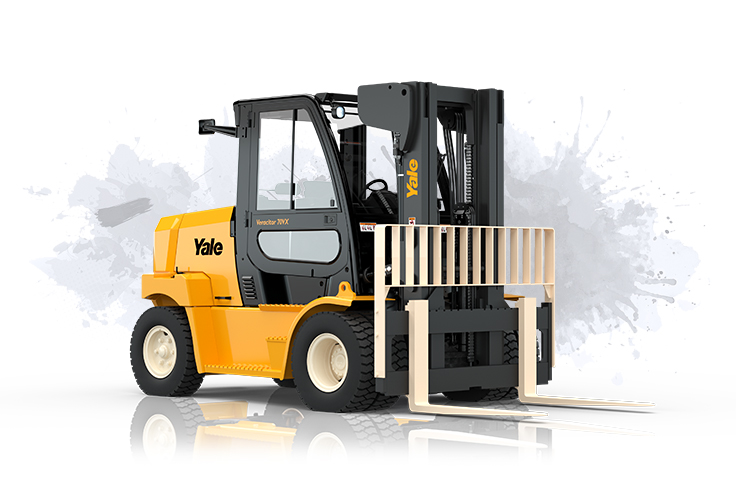

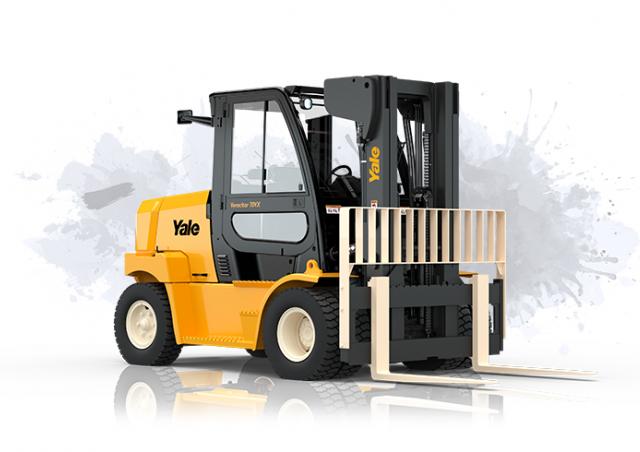

LPG Forklifts Yale GLP80SVX Base

Visit Yale live at

Technical specs - GLP80SVX Base Yale

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG
8 t
Centre of gravity
600 mm
Standard tyres
L 4x/2
Transmission type
W
Weight
11.47 t
Total width
2082 mm
Construction height
2549 mm
Turning radius
3.15 m
Lifting height
2.94 m
Travel speed with / without load
21.9/23.1 km/h
Hoisting with / without load
0.36/0.36 m/s
Lowering with load
0,41 m/s
max. climbing ability
25 %
Model series
GLP
Engine manuf.
Kubota
Engine type
WG3800-L-E3
Engine power
71.6 kW
Displacement
4.302 l
Revolutions at max torque
2400 rpm
Max. torque
285/2400 Nm
No. of cylinders
6
Emission level
V

More technical details, like: dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulics with Simplex mast (3,3m up to 10t • 5m > 10t load capacity)
