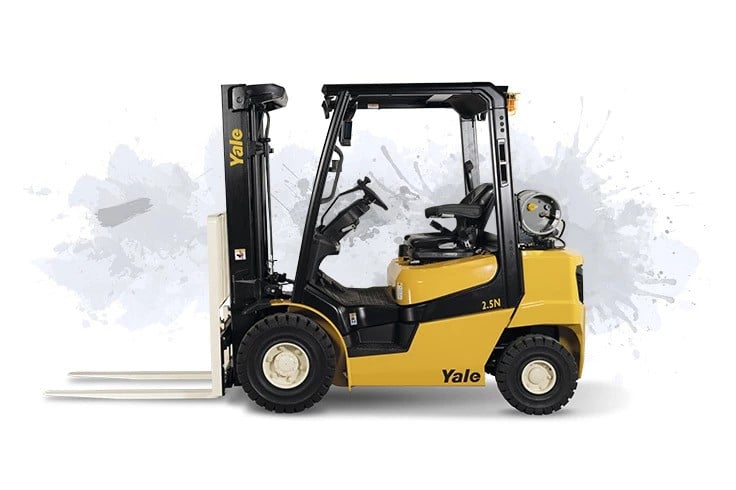

GLP3.5N Yale LPG Forklift Specs & Dimensions (2023 - 2026)

Nominal load at COG: 3.5t – Centre of gravity: 500mm – Standard tyres: SE 2x/2 – Transmission type: EW – Weight: 4.91t – Total wid…

Nominal load at COG: 3.5t – Centre of gravity: 500mm – Standard tyres: SE 2x/2 – Transmission type: EW – Weight: 4.91t – Total width: 1186mm

Yale is the manufacturer of the GLP3.5N LPG forklift. The production years for this model are (2023 - 2026). Find here detailed specs for GLP3.5N LPG powered lift truck - in a form of table chart below and downloadable datasheet. Explore also the other forklift models produced by Yale.

LPG Forklifts Yale GLP3.5N

Visit Yale live at

Technical specs - GLP3.5N Yale

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG
3.5 t
Centre of gravity
500 mm
Standard tyres
SE 2x/2
Transmission type
EW
Weight
4.91 t
Total width
1186 mm
Construction height
2182 mm
Turning radius
2.449 m
Lifting height
3.88 m
Travel speed with / without load
18,4/18,6 km/h
Hoisting with / without load
0,56/0,61 m/s
Lowering with load
0,58 m/s
max. climbing ability
21 %
Model series
GDP
Engine manuf.
Yanmar
Engine type
4TN88GN
Engine power
42 kW
Displacement
2.19 l
Revolutions at max torque
2500 rpm
Max. torque
174/1690 Nm
No. of cylinders
4
Emission level
V

More technical details, like: dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulics with Simplex mast (3,3m up to 10t • 5m > 10t load capacity)
