GLP20UX Yale LPG Forklift Specs & Dimensions (2021 - 2026)

Nominal load at COG: 2t – Centre of gravity: 500mm – Standard tyres: L 2x/2 – Weight: 3.39t – Total width: 1150mm – Construction h…

Nominal load at COG: 2t – Centre of gravity: 500mm – Standard tyres: L 2x/2 – Weight: 3.39t – Total width: 1150mm – Construction height: 2180mm

Yale is the manufacturer of the GLP20UX LPG forklift. The production years for this model are (2021 - 2026). Find here detailed specs for GLP20UX LPG powered lift truck - in a form of table chart below and downloadable datasheet. Explore also the other forklift models produced by Yale.

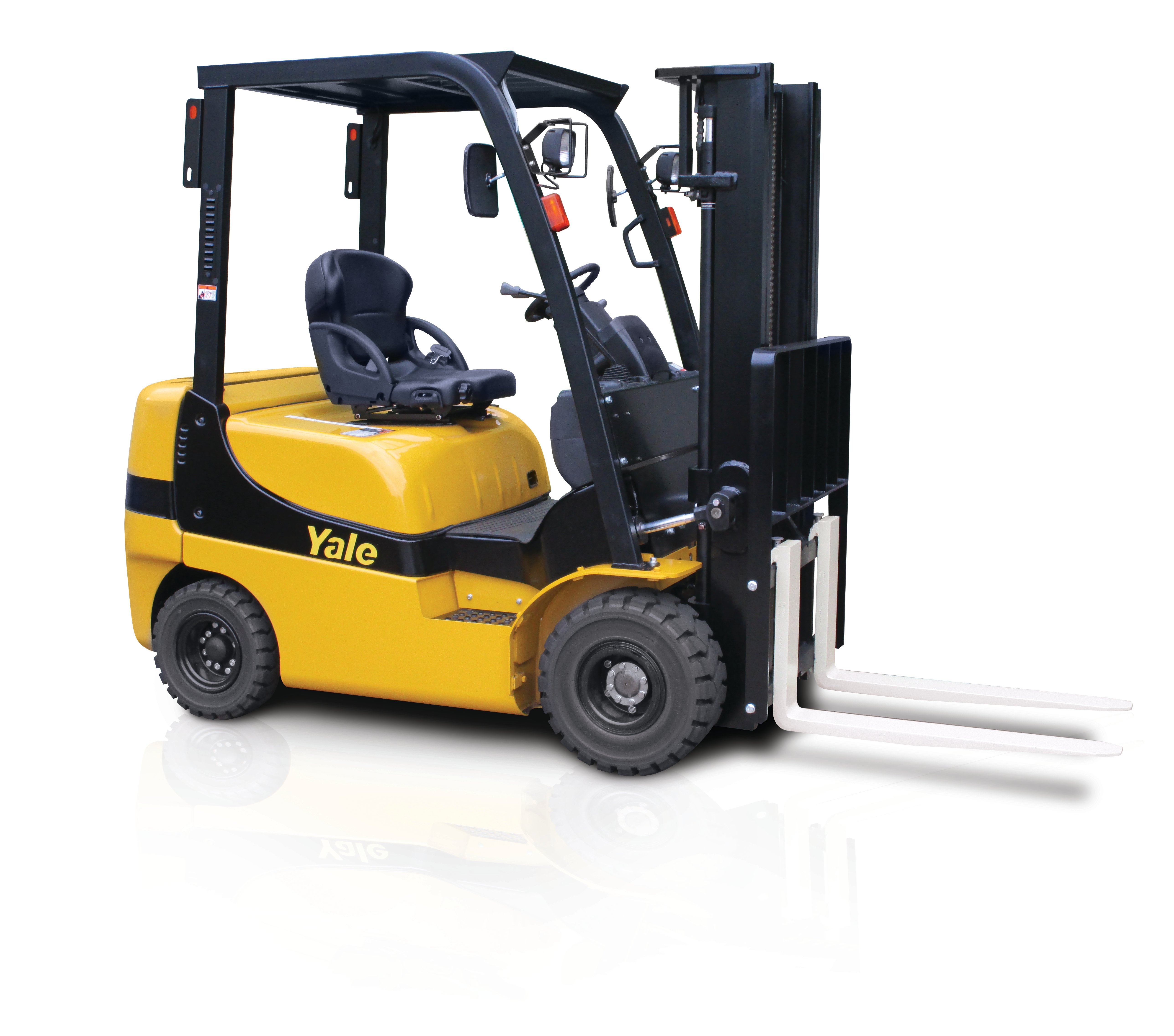

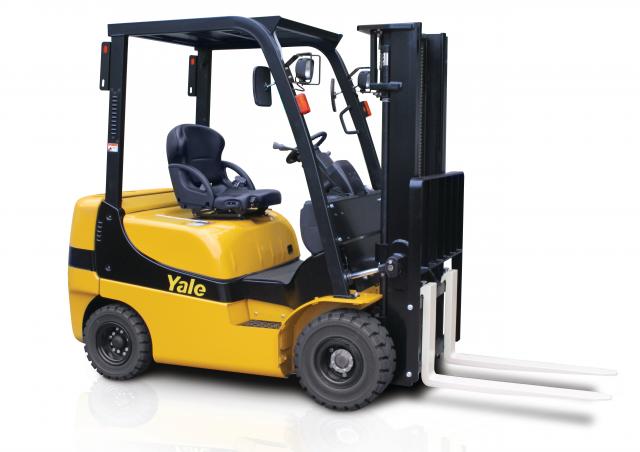

LPG Forklifts Yale GLP20UX

Visit Yale live at

Technical specs - GLP20UX Yale

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG
2 t
Centre of gravity
500 mm
Standard tyres
L 2x/2
Weight
3.39 t
Total width
1150 mm
Construction height
2180 mm
Turning radius
2.29 m
Lifting height
3 m
Travel speed with / without load
19/19 km/h
Hoisting with / without load
0,57/0,6 m/s
Lowering with load
0,43 m/s
Model series
GLP
Engine manuf.
PSI
Engine type
2.4L
Engine power
48 kW
Displacement
2.35 l
Revolutions at max torque
2700 rpm
No. of cylinders
4
Emission level
V

More technical details, like: transmission type, max. climbing ability, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.

L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulics with Simplex mast (3,3m up to 10t • 5m > 10t load capacity)
