GLP20RK Yale LPG Forklift Specs & Dimensions (2021 - 2026)

Nominal load at COG: 2t – Centre of gravity: 500mm – Standard tyres: Front: 7.00-12-12PR / Rear: 6.00-9-10PR – Weight: 3.45t – Tot…

Nominal load at COG: 2t – Centre of gravity: 500mm – Standard tyres: Front: 7.00-12-12PR / Rear: 6.00-9-10PR – Weight: 3.45t – Total width: 1160mm – Construction height: 2130mm

Yale is the manufacturer of the GLP20RK LPG forklift. The production years for this model are (2021 - 2026). Find here detailed specs for GLP20RK LPG powered lift truck - in a form of table chart below and downloadable datasheet. Explore also the other forklift models produced by Yale.

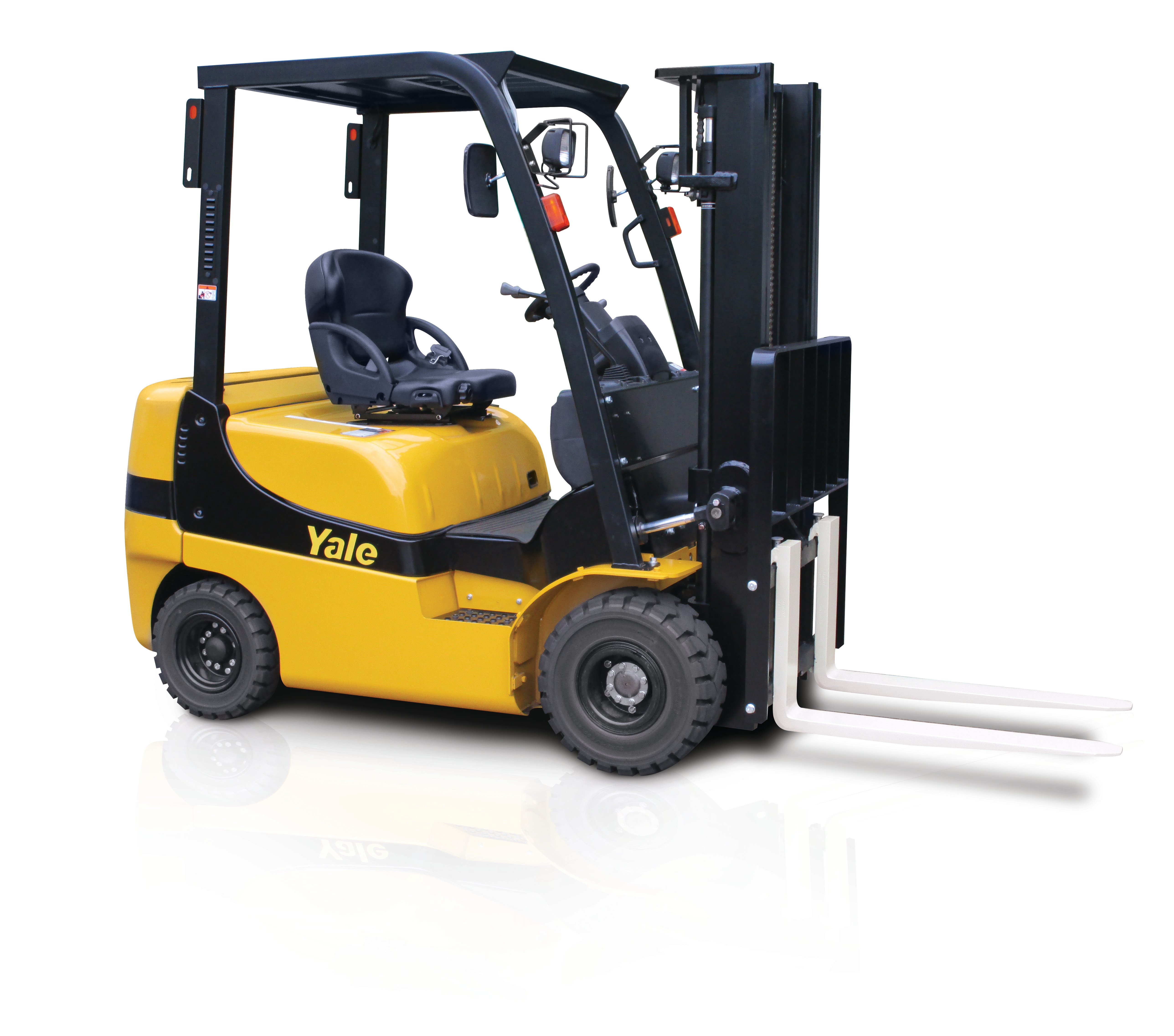

LPG Forklifts Yale GLP20RK

Visit Yale live at

Technical specs - GLP20RK Yale

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG
2 t
Centre of gravity
500 mm
Standard tyres
Front: 7.00-12-12PR / Rear: 6.00-9-10PR
Weight
3.45 t
Total width
1160 mm
Construction height
2130 mm
Turning radius
2.15 m
Lifting height
3 m
Travel speed with / without load
18/18.5 km/h
Hoisting with / without load
0.57/0.6 m/s
Lowering with load
0.52 m/s
max. climbing ability
30 %
Model series
GLP
Engine manuf.
Mazda
Engine type
FE
Engine power
33.8 kW
Displacement
2 l
Revolutions at max torque
1600 rpm
Max. torque
137 Nm
No. of cylinders
4

More technical details, like: transmission type, dimension lxwxh, cylinder bore x stroke, emission level are available in the full technical specs.

L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulics with Simplex mast (3,3m up to 10t • 5m > 10t load capacity)
