GLP20MX Yale LPG Forklift Specs & Dimensions (2022 - 2026)

Nominal load at COG: 2t – Centre of gravity: 500mm – Standard tyres: 7.00-12-12PR(7.00-12-12PR)/6.00-9-10PR – Weight: 3.36t – Tota…

Nominal load at COG: 2t – Centre of gravity: 500mm – Standard tyres: 7.00-12-12PR(7.00-12-12PR)/6.00-9-10PR – Weight: 3.36t – Total width: 1160mm – Construction height: 1995mm

Yale is the manufacturer of the GLP20MX LPG forklift. The production years for this model are (2022 - 2026). Find here detailed specs for GLP20MX LPG powered lift truck - in a form of table chart below and downloadable datasheet. Explore also the other forklift models produced by Yale.

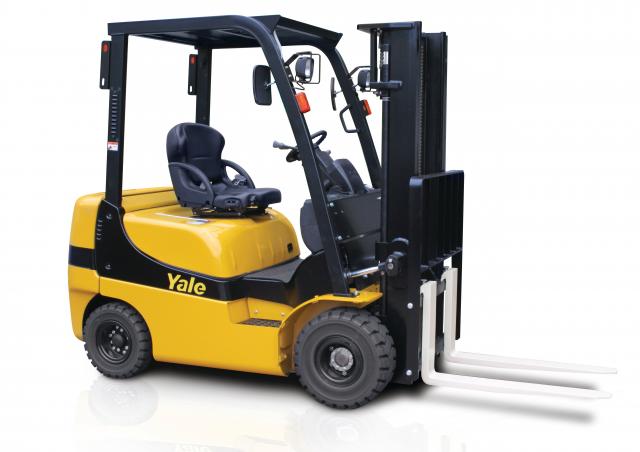

LPG Forklifts Yale GLP20MX

Visit Yale live at

Technical specs - GLP20MX Yale

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG
2 t
Centre of gravity
500 mm
Standard tyres
7.00-12-12PR(7.00-12-12PR)/6.00-9-10PR
Weight
3.36 t
Total width
1160 mm
Construction height
1995 mm
Turning radius
2.185 m
Lifting height
3 m
Travel speed with / without load
18/19.5 km/h
Hoisting with / without load
0.685/0.71 m/s
Lowering with load
0.54 m/s
max. climbing ability
40 %
Model series
GLP
Engine manuf.
GCT
Engine type
K25
Engine power
44.7 kW
Displacement
2.49 l
Revolutions at max torque
1600 rpm
Max. torque
169 Nm
No. of cylinders
4

More technical details, like: transmission type, dimension lxwxh, cylinder bore x stroke, emission level are available in the full technical specs.

L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulics with Simplex mast (3,3m up to 10t • 5m > 10t load capacity)

Download datasheets (PDF)

Yale GLP20MX overview

Drive

Standard

Simplex mast Operator presence Hydraulic Interlock Traction Interlock Cowl mounted levers Trunnion mount mast Full halogen light kit including turn indicators Head light guards Rotating LED beacon Swing down LPG bracket Small diameter steering wheel Rubber floor mat Entry assist grip Electric directional shift lever Neutral start Reverse alarm Separate inch/brake podal Comprehensive dash display Single element air cleaner Rubber mount rear axle Wide mast with wide field vision


Handling

Options

Engine options – LPG, Diesel, Dual Fuel Mast options simplex mast – 3000mm to 5000mm lift duplex mast – 3300mm to 4100mm lift triplex mast – 4000mm to 6000mm lift Integral side shift carriage Fork lengths – 920mm to 2120mm Tyre options – pneumatic, solid, non-marking Control valve options Front screens Rain covers Cabs Pre-cleaner for air filter LED lighting Speed meter Load weight meter Special paint Reverse assist grip with horn button Yale Vision Telemetry


Performance

Continuous Stability Enhancement (CSE)

The maintenance free CSE enhances lateral stability without compromising uneven surface travel, through reducing truck lean by limiting the articulation of the steer axle.
