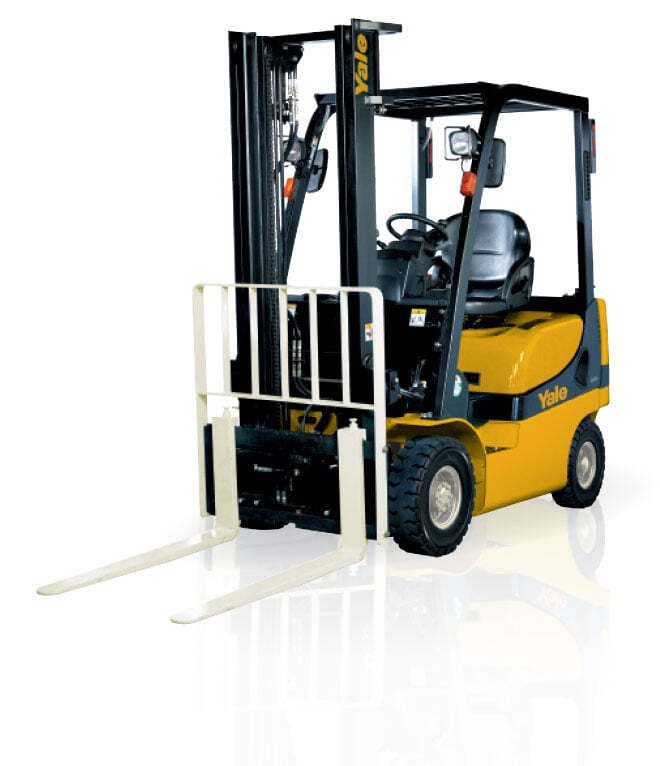

GLP15AK Yale LPG Forklift Specs & Dimensions (2021 - 2026)

Nominal load at COG: 1.5t – Centre of gravity: 500mm – Standard tyres: Front: 6.00-9-10PR / Rear: 5.00-8-8PR – Weight: 2.61t – Tot…

Nominal load at COG: 1.5t – Centre of gravity: 500mm – Standard tyres: Front: 6.00-9-10PR / Rear: 5.00-8-8PR – Weight: 2.61t – Total width: 1070mm – Construction height: 2060mm

Yale is the manufacturer of the GLP15AK LPG forklift. The production years for this model are (2021 - 2026). Find here detailed specs for GLP15AK LPG powered lift truck - in a form of table chart below and downloadable datasheet. Explore also the other forklift models produced by Yale.

LPG Forklifts Yale GLP15AK

Visit Yale live at

Technical specs - GLP15AK Yale

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG
1.5 t
Centre of gravity
500 mm
Standard tyres
Front: 6.00-9-10PR / Rear: 5.00-8-8PR
Weight
2.61 t
Total width
1070 mm
Construction height
2060 mm
Turning radius
1.98 m
Lifting height
3 m
Travel speed with / without load
17.5/18.5 km/h
Hoisting with / without load
0.6/0.64 m/s
Lowering with load
0.52 m/s
max. climbing ability
39 %
Model series
GLP
Engine manuf.
Mazda
Engine type
FE
Engine power
30.8 kW
Displacement
2 l
Revolutions at max torque
1600 rpm
Max. torque
137 Nm
No. of cylinders
4

More technical details, like: transmission type, dimension lxwxh, cylinder bore x stroke, emission level are available in the full technical specs.

L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulics with Simplex mast (3,3m up to 10t • 5m > 10t load capacity)
