    Lectura specs Forklifts LPG Forklifts LPG Forklifts Yale Yale GLP 30MX specifications

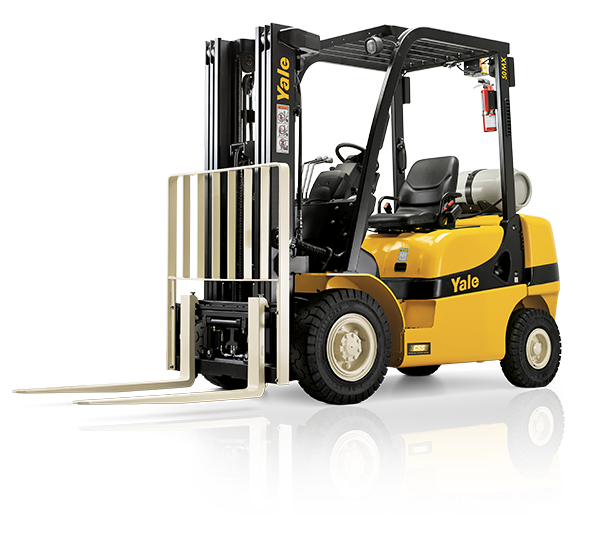

    Technical specs - GLP 30MX Yale

    Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

    Nominal load at COG 3 t
    Standard tyres 2x/2
    Centre of gravity 500 mm
    Weight 4.65 t
    Turning radius 2.324 m
    Lifting height 3.3 m
    Travel speed with / without load 19.8/20 km/h
    Hoisting with / without load 0.54/0.57 m/s
    Lowering with load 0.58/0.5 m/s
    max. climbing ability 16.2/30.5 %
    Engine manuf. PSI
    Engine type 2.4L
    Engine power 46 kW
    Displacement 2.351 l
    Revolutions at max torque 2700 rpm
    Max. torque 164/2000 Nm
    No. of cylinders 4
    Transmission type ###
    Total width ###
    Construction height ###
    Engine power ###
    Dimension lxwxh ###
    Cylinder bore x stroke ###
    Weight ###
    Emission level ###

    L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulics with Simplex mast (3,3m up to 10t • 5m > 10t load capacity)

    RAVAS iForks-32 weight scaling solution for your Yale GLP 30MX

    RAVAS iForks-32

    Successful RAVAS scale forks

    Fit iForks for your Yale GLP 30MX and realise immediate cost savings

    Functions:

    Gross/net weighing

    Totalling with sequence number

    Weight data transfer to smart phone, tablet, handheld and WMS/ERP system

    Benefits:

    Installation within 5 minutes

    Completely wireless with digital calibration

    More information

    Download data sheets - Yale GLP 30MX

    X

    What do you think about this machine?


    Compare Yale GLP 30MX with other models

    Press 1 image

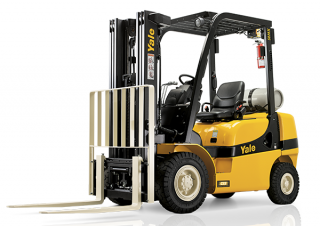

    Yale GLP 30MX
