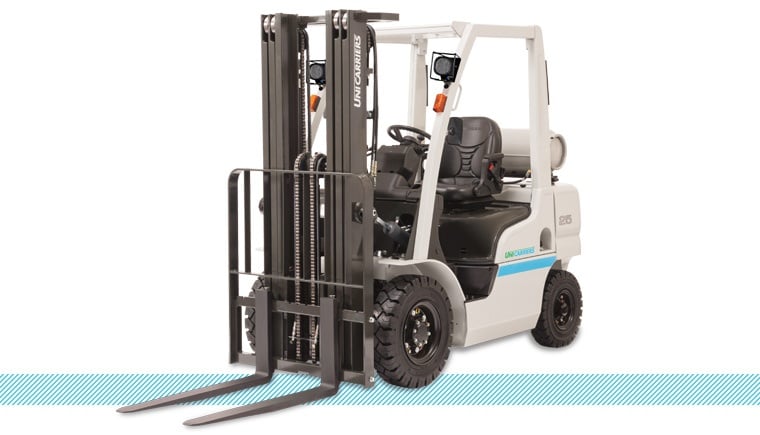

UniCarriers PF55
- Nominal load at COG:
- 2.5 t
- Centre of gravity:
- 600 mm
- Standard tyres:
- Pneumatic. 2x/2
- Weight:
- 4 t
PF55 UniCarriers LPG Forklift Specs & Dimensions (2019 - 2026)
Technical specs - PF55 UniCarriers
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Nominal load at COG
- 2.5 t
- Centre of gravity
- 600 mm
- Standard tyres
- Pneumatic. 2x/2
- Weight
- 4 t
- Total width
- 1665 mm
- Construction height
- 2175 mm
- Turning radius
- 2.24 m
- Lifting height
- 3.3 m
- Travel speed with / without load
- 19.0/19.0 km/h
- Hoisting with / without load
- 0.53/0.58 m/s
- Lowering with load
- 0.5 m/s
- max. climbing ability
- 30 %
- Model series
- PF
- Engine manuf.
- GCT
- Engine type
- GK25
- Engine power
- 47 kW
- Displacement
- 2.5 l
- Revolutions at max torque
- 1600 rpm
- Max. torque
- 188 Nm
More technical details, like: transmission type, dimension lxwxh, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.
L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulics with Simplex mast (3,3m up to 10t • 5m > 10t load capacity)
