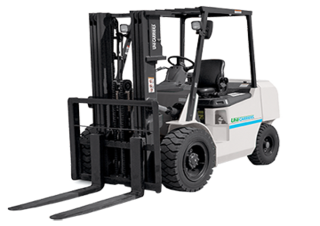

FG30T5C UniCarriers LPG Forklift Specs & Dimensions (2021 - 2026)

Name: UniCarriers FG30T5C LPG Forklifts
Brand: UniCarriers

Nominal load at COG: 3t – Centre of gravity: 500mm – Standard tyres: Pneumatic. 2x/2 – Weight: 4.19t – Total width: 1275mm – Const…

Nominal load at COG: 3t – Centre of gravity: 500mm – Standard tyres: Pneumatic. 2x/2 – Weight: 4.19t – Total width: 1275mm – Construction height: 2095mm

UniCarriers is the manufacturer of the FG30T5C LPG forklift. The production years for this model are (2021 - 2026). Find here detailed specs for FG30T5C LPG powered lift truck - in a form of table chart below and downloadable datasheet. Explore also the other forklift models produced by UniCarriers.

FG30T5C

Years of manufacture: 2021—2026

Buy & Rent
Valuate & Sell
Spare parts
Transport
News

See offers

Technical specs - FG30T5C UniCarriers

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG: 3 t

Centre of gravity: 500 mm

Standard tyres: Pneumatic. 2x/2

Weight: 4.19 t

Total width: 1275 mm

Construction height: 2095 mm

Turning radius: 2.415 m

Lifting height: 3 m

Travel speed with / without load: 19.0/19.5 km/h

Hoisting with / without load: 0.46/0.53 m/s

Lowering with load: 0.53 m/s

max. climbing ability: 26.5 %

Model series: FG

Engine manuf.: GCT

Engine type: GK25

Engine power: 40 kW

Displacement: 2.5 l

Revolutions at max torque: 1600 rpm

Max. torque: 186 Nm

More technical details, like: transmission type, dimension lxwxh, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulics with Simplex mast (3,3m up to 10t • 5m > 10t load capacity)
