FG30T UN Forklift LPG Forklift Specs & Dimensions (2024 - 2026)

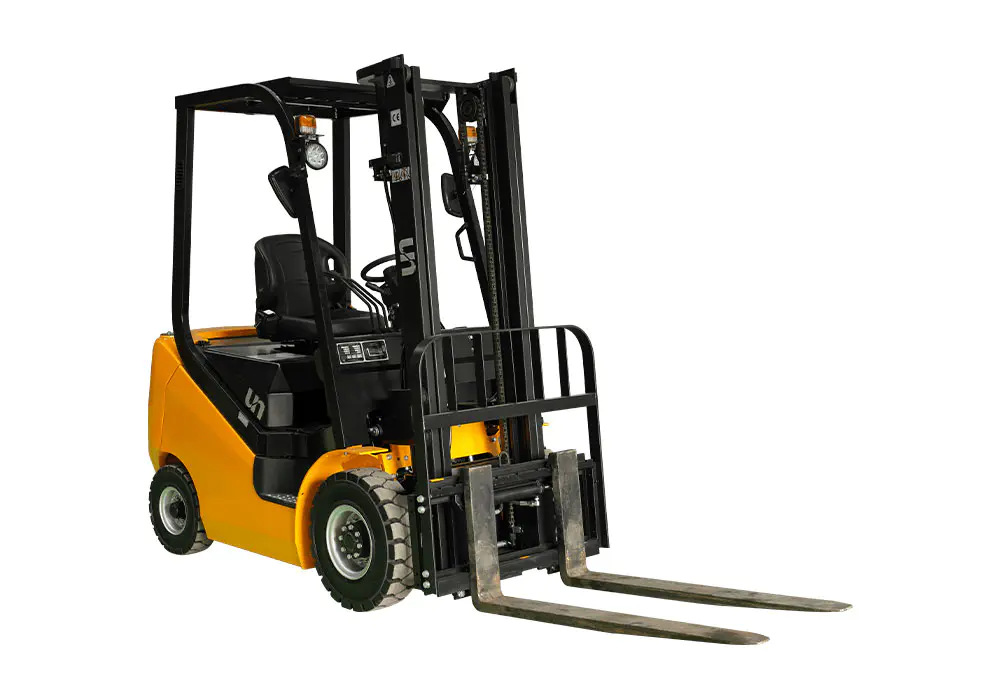

Name: UN Forklift FG30T LPG Forklifts
Brand: UN Forklift

Nominal load at COG: 3t – Centre of gravity: 500mm – Standard tyres: F: 28x9-15-12PR / R: 6.50-10-10PR – Weight: 4.46t – Total wid…

Nominal load at COG: 3t – Centre of gravity: 500mm – Standard tyres: F: 28x9-15-12PR / R: 6.50-10-10PR – Weight: 4.46t – Total width: 1225mm – Construction height: 2235mm

UN Forklift is the manufacturer of the FG30T LPG forklift. The production years for this model are (2024 - 2026). Find here detailed specs for FG30T LPG powered lift truck - in a form of table chart below and downloadable datasheet. Explore also the other forklift models produced by UN Forklift.

FG30T

Years of manufacture: 2024—2026

Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - FG30T UN Forklift

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG: 3 t

Centre of gravity: 500 mm

Standard tyres: F: 28x9-15-12PR / R: 6.50-10-10PR

Weight: 4.46 t

Total width: 1225 mm

Construction height: 2235 mm

Turning radius: 2.43 m

Lifting height: 3 m

Travel speed with / without load: 19 km/h

Hoisting with / without load: 0.43 m/s

Lowering with load: 0.45 m/s

max. climbing ability: 20 %

Model series: FG

More technical details, like: transmission type, engine manuf., engine type, engine power, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulics with Simplex mast (3,3m up to 10t • 5m > 10t load capacity)
