FG40N Mitsubishi LPG Forklift Specs & Dimensions (2018 - 2021)

Nominal load at COG: 4t – Centre of gravity: 500mm – Standard tyres: L 2x/2 – Transmission type: W – Weight: 5.86t – Total width: …

Nominal load at COG: 4t – Centre of gravity: 500mm – Standard tyres: L 2x/2 – Transmission type: W – Weight: 5.86t – Total width: 1965mm

Mitsubishi is the manufacturer of the FG40N LPG forklift. The production years for this model are (2018 - 2021). Find here detailed specs for FG40N LPG powered lift truck - in a form of table chart below and downloadable datasheet. Explore also the other forklift models produced by Mitsubishi.

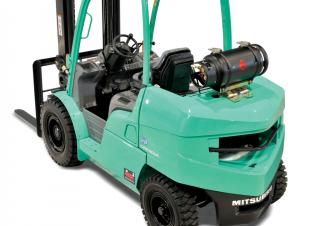

LPG Forklifts Mitsubishi FG40N

Technical specs - FG40N Mitsubishi

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG
4 t
Centre of gravity
500 mm
Standard tyres
L 2x/2
Transmission type
W
Weight
5.86 t
Total width
1965 mm
Construction height
2320 mm
Turning radius
2.58 m
Lifting height
5 m
Travel speed with / without load
22/22.5 km/h
Hoisting with / without load
0.57/0.6 m/s
Lowering with load
0.5 m/s
max. climbing ability
30 %
Model series
FG
Engine manuf.
Nissan
Engine type
TB 45
Engine power
72 kW
Displacement
4.5 l
Revolutions at max torque
2450 rpm
Max. torque
280/1200 Nm
No. of cylinders
6

More technical details, like: dimension lxwxh, cylinder bore x stroke, emission level are available in the full technical specs.

L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulics with Simplex mast (3,3m up to 10t • 5m > 10t load capacity)
