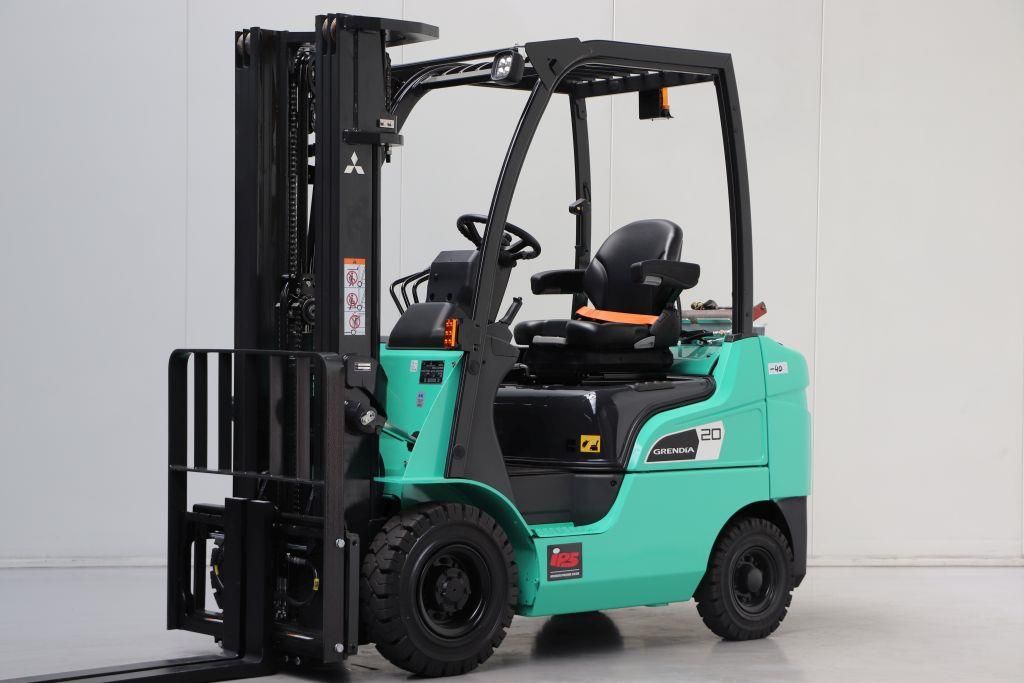

    Mitsubishi FG20CN Specifications & Technical Data (2018-2021)

    Rate this machine now!

    Nominal load at COG: 2t – Standard tyres: SE 2x/2 – Centre of gravity: 500mm – Transmission type: W – Weight: 3.01t – Total width: 1065mm

    Technical specs - FG20CN Mitsubishi

    Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

    Nominal load at COG 2 t
    Standard tyres SE 2x/2
    Centre of gravity 500 mm
    Transmission type W
    Weight 3.01 t
    Total width 1065 mm
    Construction height 2140 mm
    Turning radius 2.02 m
    Lifting height 3.29 m
    Travel speed with / without load 19/19,5 km/h
    Hoisting with / without load 0,64/0,65 m/s
    Lowering with load 0,52/0,5 m/s
    max. climbing ability 37/70 %
    Engine manuf. GCT
    Engine type GK21E
    Engine power 41 kW
    Displacement 2.065 l
    Revolutions at max torque 2700 rpm
    Max. torque 151/1800 Nm
    No. of cylinders 4
    Engine power ###
    Dimension lxwxh ###
    Cylinder bore x stroke ###
    Weight ###
    Emission level ###

    L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulics with Simplex mast (3,3m up to 10t • 5m > 10t load capacity)
