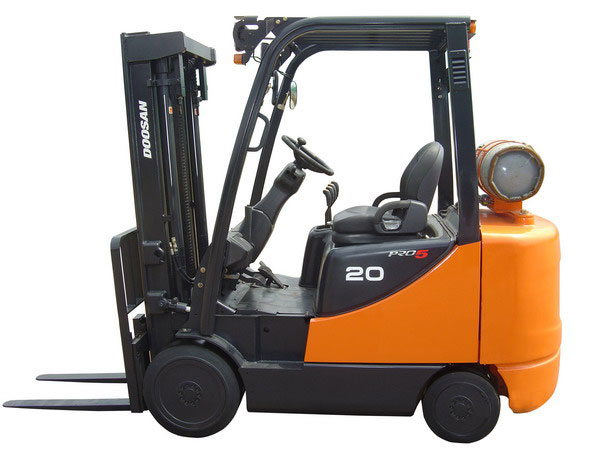

GC20E-5 Doosan LPG Forklift Specs & Dimensions (2017 - 2021)

Nominal load at COG: 2t – Centre of gravity: 500mm – Total width: 1110mm – Construction height: 2150mm – Turning radius: 2m – Trav…

Nominal load at COG: 2t – Centre of gravity: 500mm – Total width: 1110mm – Construction height: 2150mm – Turning radius: 2m – Travel speed with / without load: 16km/h

Doosan is the manufacturer of the GC20E-5 LPG forklift. The production years for this model are (2017 - 2021). Find here detailed specs for GC20E-5 LPG powered lift truck - in a form of table chart below and downloadable datasheet. Explore also the other forklift models produced by Doosan.

LPG Forklifts Doosan GC20E-5

Technical specs - GC20E-5 Doosan

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG
2 t
Centre of gravity
500 mm
Total width
1110 mm
Construction height
2150 mm
Turning radius
2 m
Travel speed with / without load
16 km/h
Hoisting with / without load
0.53 m/s
Model series
5
Engine manuf.
Hyundai
Engine type
G420F(E)
Engine power
40 kW
Displacement
1.975 l
Revolutions at max torque
1600 rpm
Max. torque
16 Nm

More technical details, like: standard tyres, transmission type, weight, lifting height, lowering with load, max. climbing ability, dimension lxwxh, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulics with Simplex mast (3,3m up to 10t • 5m > 10t load capacity)
