CGC35S-9 Crown LPG Forklift Specs & Dimensions (2021 - 2026)

Nominal load at COG: 3.62t – Standard tyres: Front:22x9x16/ Rear: 18x7x12.2 – Weight: 6.11t – Total width: 1270mm – Construction h…

Nominal load at COG: 3.62t – Standard tyres: Front:22x9x16/ Rear: 18x7x12.2 – Weight: 6.11t – Total width: 1270mm – Construction height: 3070mm – Turning radius: 2.29m

Crown is the manufacturer of the CGC35S-9 LPG forklift. The production years for this model are (2021 - 2026). Find here detailed specs for CGC35S-9 LPG powered lift truck - in a form of table chart below and downloadable datasheet. Explore also the other forklift models produced by Crown.

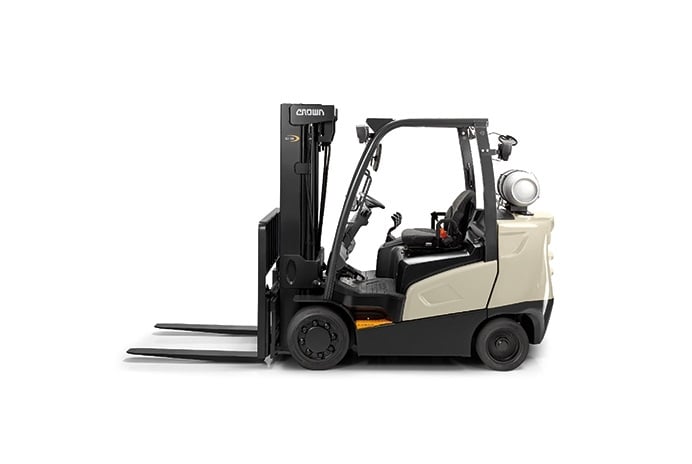

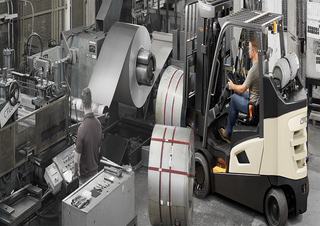

LPG Forklifts Crown CGC35S-9
LPG Forklifts Crown CGC35S-9
LPG Forklifts Crown CGC35S-9
LPG Forklifts Crown CGC35S-9
LPG Forklifts Crown CGC35S-9
LPG Forklifts Crown CGC35S-9
LPG Forklifts Crown CGC35S-9
LPG Forklifts Crown CGC35S-9
LPG Forklifts Crown CGC35S-9
LPG Forklifts Crown CGC35S-9

Technical specs - CGC35S-9 Crown

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG
3.62 t
Standard tyres
Front:22x9x16/ Rear: 18x7x12.2
Weight
6.11 t
Total width
1270 mm
Construction height
3070 mm
Turning radius
2.29 m
Travel speed with / without load
16.4/16.9 km/h
Hoisting with / without load
0.61/0.64 m/s
Lowering with load
0.51 m/s
Model series
CGC
Engine manuf.
Kubota
Engine type
WG3800
Displacement
3.76 l
Revolutions at max torque
1200 rpm
Max. torque
290 Nm
No. of cylinders
4

More technical details, like: centre of gravity, transmission type, lifting height, max. climbing ability, engine power, dimension lxwxh, cylinder bore x stroke, emission level are available in the full technical specs.

L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulics with Simplex mast (3,3m up to 10t • 5m > 10t load capacity)
