CGC20SC-9 Crown LPG Forklift Specs & Dimensions (2021 - 2026)

Nominal load at COG: 1.78t – Standard tyres: Front:18x6x12.2/ Rear: 14x5x10 – Transmission type: HY – Weight: 3.13t – Total width:…

Nominal load at COG: 1.78t – Standard tyres: Front:18x6x12.2/ Rear: 14x5x10 – Transmission type: HY – Weight: 3.13t – Total width: 940mm – Turning radius: 1.89m

Crown is the manufacturer of the CGC20SC-9 LPG forklift. The production years for this model are (2021 - 2026). Find here detailed specs for CGC20SC-9 LPG powered lift truck - in a form of table chart below and downloadable datasheet. Explore also the other forklift models produced by Crown.

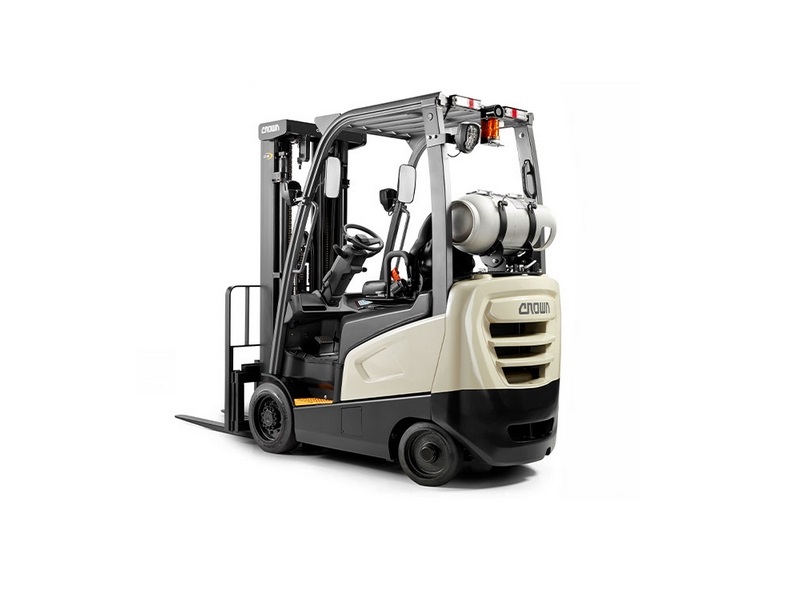

LPG Forklifts Crown CGC20SC-9
LPG Forklifts Crown CGC20SC-9
LPG Forklifts Crown CGC20SC-9
LPG Forklifts Crown CGC20SC-9

Technical specs - CGC20SC-9 Crown

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG
1.78 t
Standard tyres
Front:18x6x12.2/ Rear: 14x5x10
Transmission type
HY
Weight
3.13 t
Total width
940 mm
Turning radius
1.89 m
Lifting height
2.625 m
Travel speed with / without load
17.8/17.8 km/h
Hoisting with / without load
0.62/0.66 m/s
Lowering with load
0.51 m/s
Model series
CGC
Engine manuf.
PSI
Engine type
4G63
Engine power
37.7 kW
Revolutions at max torque
1800 rpm
Max. torque
148 Nm
No. of cylinders
4

More technical details, like: centre of gravity, construction height, max. climbing ability, dimension lxwxh, displacement, cylinder bore x stroke, emission level are available in the full technical specs.

L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulics with Simplex mast (3,3m up to 10t • 5m > 10t load capacity)

Download datasheets (PDF)

Crown CGC20SC-9 overview

Drive

Standard Features

PSI 2.0 Liter 4 cylinder LPG engine compliant to current EPA standards Cast Iron one piece drive axle housing with reinforced mast mounts Oil Cooled Disc Brakes – Fully Enclosed Push button electronic parking brake Heavy-duty steer axle including large kingpins with tapered roller bearings Operator design features Wide spacious floorboard with thick rubber floor mat Suspension seat with hip restraint and high visibility seat belt Operator Sensing System (OSS) Rear travel handle with horn Low front cowl/dash optimizes site lines Clear view overhead guard and mast design Low step height Tilt steering column with small steering wheel and steer knob Large dual rear view mirrors Two front headlights – halogen Easy to read large LED display Two USB ports


Safety

Warning Device Options

Audible or Visual Alerts. Safety considerations and dangers associated with audible travel alarms and lights include: Multiple alarms and/or lights can cause confusion. Workers ignore the alarms and/or lights after day-in and day-out exposure. The operator may transfer the responsibility for “looking out” to the pedestrians. This can annoy both operators and pedestrians.
