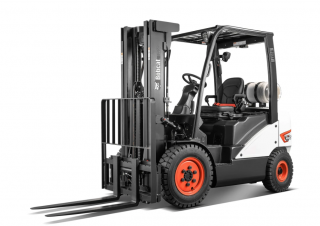

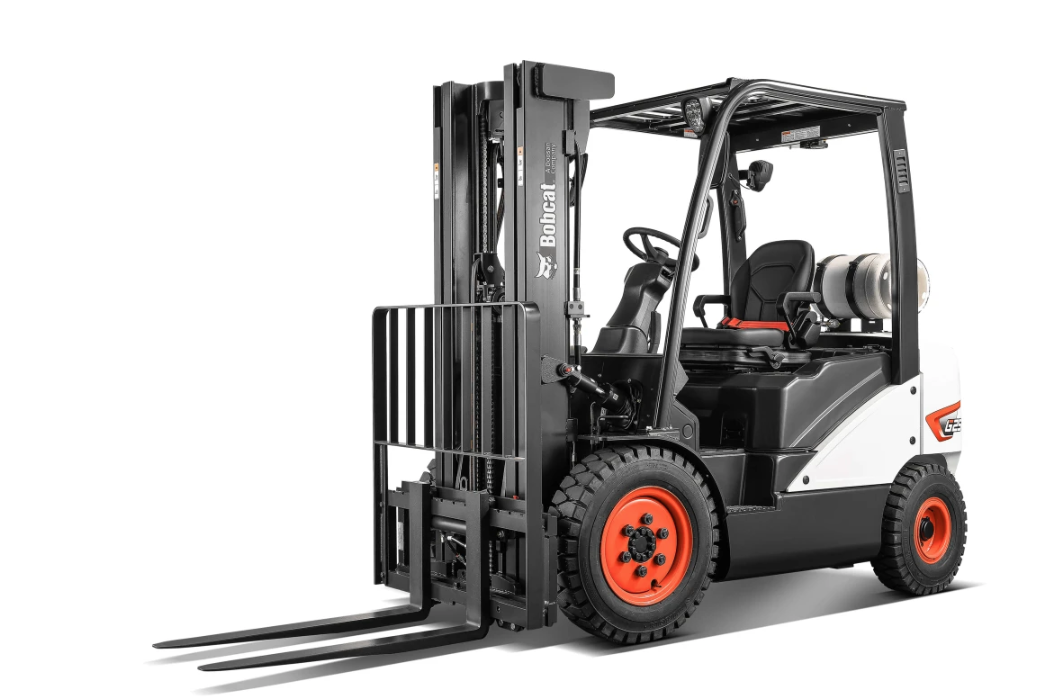

G20E-7 Bobcat LPG Forklift Specs & Dimensions (2024 - 2026)
Visit Bobcat live at
Technical specs - G20E-7 Bobcat
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Nominal load at COG
- 2 t
- Centre of gravity
- 500 mm
- Standard tyres
- 7.00X15-12/6.50X10-10
- Weight
- 3.5 t
- Total width
- 1070 mm
- Turning radius
- 2.22 m
- Lifting height
- 3.23 m
- Travel speed with / without load
- 20 km/h
- Model series
- 7-Series (E)
- Engine manuf.
- HMC
- Engine type
- G424IE
- Engine power
- 45.4 kW
- Displacement
- 2.3 l
- No. of cylinders
- 4
More technical details, like: transmission type, construction height, hoisting with / without load, lowering with load, max. climbing ability, dimension lxwxh, revolutions at max torque, max. torque, cylinder bore x stroke, emission level are available in the full technical specs.
L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulics with Simplex mast (3,3m up to 10t • 5m > 10t load capacity)
