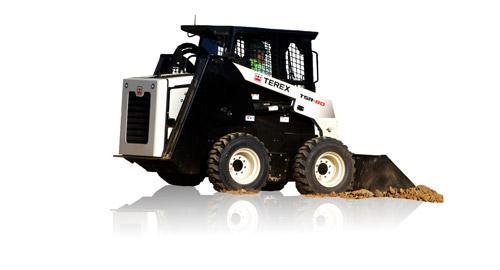

TSR 80 Terex TSR 80 Specifications & Technical Data (2011—2017)

The Terex TSR 80 is a skid steer loader manufactured by Terex from 2011 to 2017. It has a weight of 3.61 tons and a transport leng…

The Terex TSR 80 is a skid steer loader manufactured by Terex from 2011 to 2017. It has a weight of 3.61 tons and a transport length of 3.65 meters. The bucket width is 1.68 meters, and the maximum discharge height is 2.41 meters. The transport width is 1.28 meters, and the transport height is 2.1 meters. The rated operating capacity of this construction machine is 1052 kilograms.

Skid Steer Loaders Terex TSR 80

Technical specs - TSR 80 Terex

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
3.61 t
Rated operating capacity
1052 kg
Standard tyres
12x16.5
Bucket width
1.68 m
Driver protection
Kb
Transport length
3.65 m
Transport width
1.28 m
Transport height
2.1 m
Travel speed
13.6 km/h
Max. discharge height
2.41 m
Model series
TSR
Engine manuf.
Perkins
Engine type
804D-33T
Engine power
62 kW
Displacement
3.3 l
Revolutions at max torque
2500 rpm

More technical details, like: track width, bucket capacity, steering mode, lifting force, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin and std. shovel with teeth

Special equipment

Diesel particulate filter
No
LPG motor
No
Burglar proof system
No

Download datasheets (PDF)

Terex TSR 80 FAQ

When was the Terex TSR 80 manufactured?

The Terex TSR 80 was manufactured from 2011 to 2017.

How much does the Terex TSR 80 skid steer loader weigh?

The Terex TSR 80 skid steer loader weighs 3.61 tons.

What are the transport dimensions of the Terex TSR 80 skid steer loader?

The Terex TSR 80 skid steer loader has a transport length of 3.65 meters, a transport width of 1.28 meters, and a transport height of 2.1 meters.

What is the travel speed of the Terex TSR 80 skid steer loader?

The Terex TSR 80 skid steer loader has a travel speed of 13.6 km/h.

What are the undercarriage specifications of the Terex TSR 80 skid steer loader?

The Terex TSR 80 skid steer loader is equipped with standard tyres sized 12x16.5.

What is the material handling capacity of the Terex TSR 80 skid steer loader?

The Terex TSR 80 skid steer loader has a rated operating capacity of 1052 kg and a maximum discharge height of 2.41 meters.

What is the bucket width of the Terex TSR 80 skid steer loader?

The Terex TSR 80 skid steer loader has a bucket width of 1.68 meters.

What operator safety and support features does the Terex TSR 80 have?

The Terex TSR 80 provides operator safety through a driver protection cabin.
