TL8R-2 Takeuchi TL8R-2 Specifications & Technical Data (2022—2026)

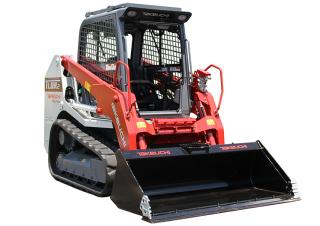

The Takeuchi TL8R-2 is a skid steer loader manufactured by Takeuchi since 2022. It has a weight of 4.165 tons and a transport leng…

The Takeuchi TL8R-2 is a skid steer loader manufactured by Takeuchi since 2022. It has a weight of 4.165 tons and a transport length of 3.485 meters. The bucket width is 1.675 meters, and the maximum discharge height is 3.08 meters. It has a travel speed of 11.2 km/h, with a transport width of 1.66 meters and a transport height of 2.23 meters. The lifting force is 43.3 kilonewtons, and the track width is 400 millimeters. The rated operating capacity is 2740 kilograms.

Skid Steer Loaders Takeuchi TL8R-2

Technical specs - TL8R-2 Takeuchi

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
4.165 t
Rated operating capacity
2740 kg
Track width
400 mm
Bucket width
1.675 m
Driver protection
FD/Kb
Transport length
3.485 m
Transport width
1.66 m
Transport height
2.23 m
Travel speed
11.2 km/h
Max. discharge height
3.08 m
Lifting force
43.3 kN
Model series
TL
Engine manuf.
Kubota
Engine type
V3307-CR-TE5B
Engine power
54.6 kW
Displacement
3.331 l
Revolutions at max torque
2600 rpm
Max. torque
261.1 Nm
Emission level
EU Stage V / EPA Tier 4

More technical details, like: standard tyres, bucket capacity, steering mode, dimension lxwxh, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin and std. shovel with teeth

Special equipment

Diesel particulate filter
No
LPG motor
No
Burglar proof system
No

Download datasheets (PDF)

Takeuchi TL8R-2 FAQ

When was the Takeuchi TL8R-2 manufactured?

The Takeuchi TL8R-2 was first produced in 2022.

How much does the Takeuchi TL8R-2 skid steer loader weigh?

The Takeuchi TL8R-2 skid steer loader weighs 4.17 tons.

What are the transport dimensions of the Takeuchi TL8R-2 skid steer loader?

The Takeuchi TL8R-2 has a transport length of 3.49 meters, a transport width of 1.66 meters, and a transport height of 2.23 meters.

What is the travel speed of the Takeuchi TL8R-2 skid steer loader?

The Takeuchi TL8R-2 has a travel speed of 11.2 km/h.

What is the track width of the Takeuchi TL8R-2 skid steer loader?

The Takeuchi TL8R-2 skid steer loader has a track width of 400 mm.

What is the lifting force rating of the Takeuchi TL8R-2 skid steer loader?

The Takeuchi TL8R-2 skid steer loader has a lifting force of 43.3 kN.

What is the material handling capacity of the Takeuchi TL8R-2 skid steer loader?

The Takeuchi TL8R-2 has a rated operating capacity of 2740 kg and a maximum discharge height of 3.08 meters.

What is the bucket width of the Takeuchi TL8R-2 skid steer loader?

The bucket width of the Takeuchi TL8R-2 skid steer loader is 1.68 meters.

What operator safety features does the Takeuchi TL8R-2 have?

The Takeuchi TL8R-2 has driver protection in the form of a Canopy and a Cabin.
