TL 240 Takeuchi TL 240 Specifications & Technical Data (2008—2014)

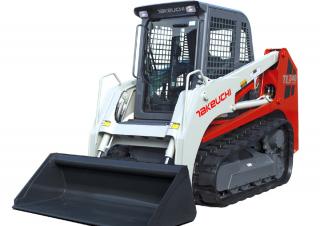

The Takeuchi TL 240 is a skid steer loader manufactured from 2008 to 2014. It has a weight of 5.22 tons and a transport length of …

The Takeuchi TL 240 is a skid steer loader manufactured from 2008 to 2014. It has a weight of 5.22 tons and a transport length of 3.985 meters. The bucket capacity is 0.579 cubic meters with a width of 1.96 meters. The maximum discharge height is 2.43 meters and it has a travel speed of 12 km/h. The transport width is 1.86 meters and the transport height is 2.34 meters. It has a lifting force of 38.5 kN and a rated operating capacity of 945 kg.

Skid Steer Loaders Takeuchi TL 240

Technical specs - TL 240 Takeuchi

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
5.22 t
Rated operating capacity
945 kg
Bucket width
1.96 m
Bucket capacity
0.579 m³
Driver protection
KbR
Transport length
3.985 m
Transport width
1.86 m
Transport height
2.34 m
Travel speed
12 km/h
Max. discharge height
2.43 m
Lifting force
38.5 kN
Model series
TL
Engine manuf.
Kubota
Engine type
V3800DI-T
Engine power
68.3 kW
Displacement
3.77 l
Revolutions at max torque
2600 rpm

More technical details, like: track width, standard tyres, steering mode, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level, lift geometry, access, suspension seat, engine manufacturer...

More technical details, like: track width, standard tyres, steering mode, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level, lift geometry, access, suspension seat, engine manufacturer, engine model, emission rating, number of cylinders, aspiration, rated speed, engine output - net, engine output - gross, transmission type, track shoe width, length - with bucket, width - no bucket, width - with bucket, height - top of cab, ground clearance, height to hinge pin, dump angle, dump height - maximum, reach - max dump height, turning radius - rear corner, turning radius - bucket corner, fuel tank, heaped capacity, tipping load, operating capacity, ground bearing pressure, speed - maximum, breakout - lift, breakout - bucket, pump flow, pump flow - option, operating weight are available in the full technical specs.

Basic model with ROPS cabin and std. shovel with teeth

Special equipment

Diesel particulate filter
No
LPG motor
No
Burglar proof system
No

Download datasheets (PDF)

Takeuchi TL 240 FAQ

When was the Takeuchi TL 240 manufactured?

The Takeuchi TL 240 was manufactured from 2008 to 2014.

How much does the Takeuchi TL 240 skid steer loader weigh?

The Takeuchi TL 240 skid steer loader weighs 5.22 tons.

What are the transport dimensions of the Takeuchi TL 240 skid steer loader?

The Takeuchi TL 240 has a transport length of 3.99 meters, a transport width of 1.86 meters, and a transport height of 2.34 meters.

What is the travel speed of the Takeuchi TL 240 skid steer loader?

The Takeuchi TL 240 skid steer loader has a travel speed of 12 km/h.

What is the power rating of the Takeuchi TL 240 skid steer loader?

Power rating data for the Takeuchi TL 240 skid steer loader is not available.

What is the material handling capacity of the Takeuchi TL 240 skid steer loader?

The Takeuchi TL 240 has a rated operating capacity of 945 kg and a maximum discharge height of 2.43 meters.

What are the specifications of the primary work tool bucket on the Takeuchi TL 240?

The primary work tool bucket of the Takeuchi TL 240 has a capacity of 0.58 cubic meters and a width of 1.96 meters.

What operator safety and support features does the Takeuchi TL 240 have?

The Takeuchi TL 240 is equipped with a cabin that includes ROPS for driver protection.

How much is a Takeuchi TL 240 Skid steer loader (2008u20132014) worth?

The residual value of the Takeuchi TL 240 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
