TL 230 Takeuchi TL 230 Specifications & Technical Data (2008—2014)

Model rating
10,00 / 10

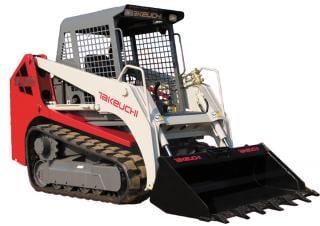

The Takeuchi TL 230 is a skid steer loader manufactured from 2008 to 2014. It has a weight of 3.72 tons and a transport length of …

The Takeuchi TL 230 is a skid steer loader manufactured from 2008 to 2014. It has a weight of 3.72 tons and a transport length of 3.43 meters. The bucket capacity is 0.351 cubic meters with a width of 1.675 meters. The maximum discharge height is 2.37 meters. The transport width is 1.58 meters and the transport height is 2.255 meters. It has a lifting force of 29.9 kilonewtons and a rated operating capacity of 2100 kilograms.

Skid Steer Loaders Takeuchi TL 230

Technical specs - TL 230 Takeuchi

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
3.72 t
Rated operating capacity
2100 kg
Bucket width
1.675 m
Bucket capacity
0.351 m³
Driver protection
Kb
Transport length
3.43 m
Transport width
1.58 m
Transport height
2.255 m
Travel speed
10.9 km/h
Max. discharge height
2.37 m
Lifting force
29.9 kN
Model series
TL
Engine manuf.
Yanmar
Engine type
4TNV98
Engine power
50.1 kW
Displacement
3.32 l
Revolutions at max torque
2500 rpm

More technical details, like: track width, standard tyres, steering mode, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level, lift geometry, access, suspension seat, engine manufacturer...

More technical details, like: track width, standard tyres, steering mode, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level, lift geometry, access, suspension seat, engine manufacturer, engine model, emission rating, number of cylinders, rated speed, engine output - net, engine output - gross, transmission type, track shoe width, length - with bucket, width - no bucket, width - with bucket, height - top of cab, ground clearance, height to hinge pin, dump angle, dump height - maximum, reach - max dump height, turning radius - rear corner, turning radius - bucket corner, fuel tank, heaped capacity, tipping load, operating capacity, ground bearing pressure, speed - maximum, breakout - lift, breakout - bucket, pump flow, operating weight are available in the full technical specs.

Basic model with ROPS cabin and std. shovel with teeth

Special equipment

Diesel particulate filter
No
LPG motor
No
Burglar proof system
No

Download datasheets (PDF)

Takeuchi TL 230 FAQ

When was the Takeuchi TL 230 manufactured?

The Takeuchi TL 230 was manufactured from 2008 to 2014.

How much does the Takeuchi TL 230 weigh?

The Takeuchi TL 230 weighs 3.72 tons.

What are the transport dimensions of the Takeuchi TL 230 skid steer loader?

The Takeuchi TL 230 has a transport length of 3.43 meters, a transport width of 1.58 meters, and a transport height of 2.26 meters.

What is the travel speed of the Takeuchi TL 230 skid steer loader?

The Takeuchi TL 230 has a travel speed of 10.9 km/h.

What is the lifting force of the Takeuchi TL 230 skid steer loader?

The Takeuchi TL 230 skid steer loader has a lifting force of 29.9 kN.

What is the material handling capacity of the Takeuchi TL 230 skid steer loader?

The Takeuchi TL 230 has a rated operating capacity of 2100 kg and a maximum discharge height of 2.37 meters.

What are the specifications of the primary work bucket on the Takeuchi TL 230 skid steer loader?

The primary work bucket of the Takeuchi TL 230 has a capacity of 0.35 cubic meters and a width of 1.68 meters.

What operator safety features does the Takeuchi TL 230 have?

The Takeuchi TL 230 has driver protection in the form of a cabin.

How much is a Takeuchi TL 230 Skid steer loader (2008u20132014) worth?

The residual value of the Takeuchi TL 230 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
