SWL3230 Sunward SWL3230 Specifications & Technical Data (2026—2026)

Weight: 3.5t – Rated operating capacity: 1100kg – Bucket width: 1.83m – Driver protection: Kb – Steering mode: PL – Transport length: 3.724m

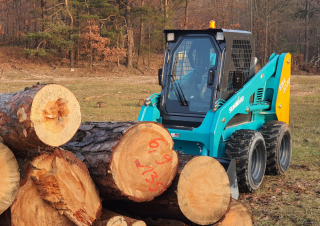

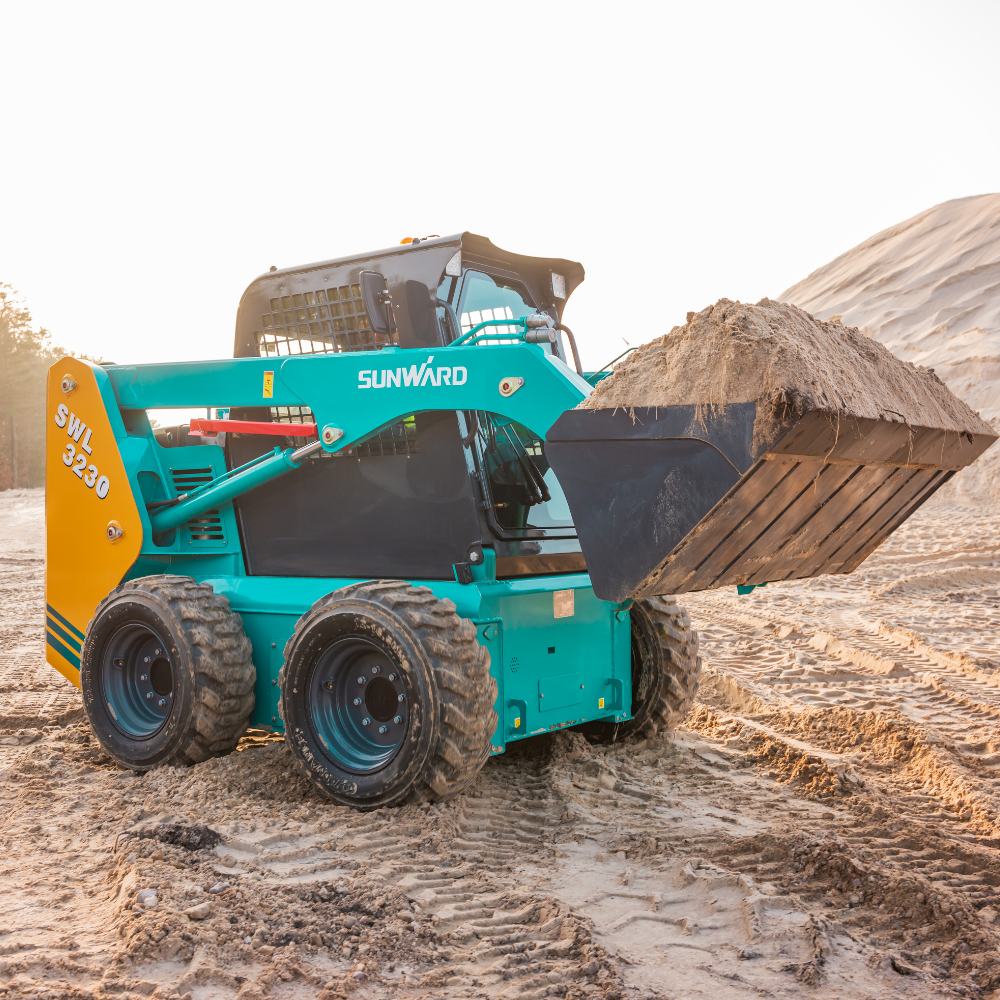

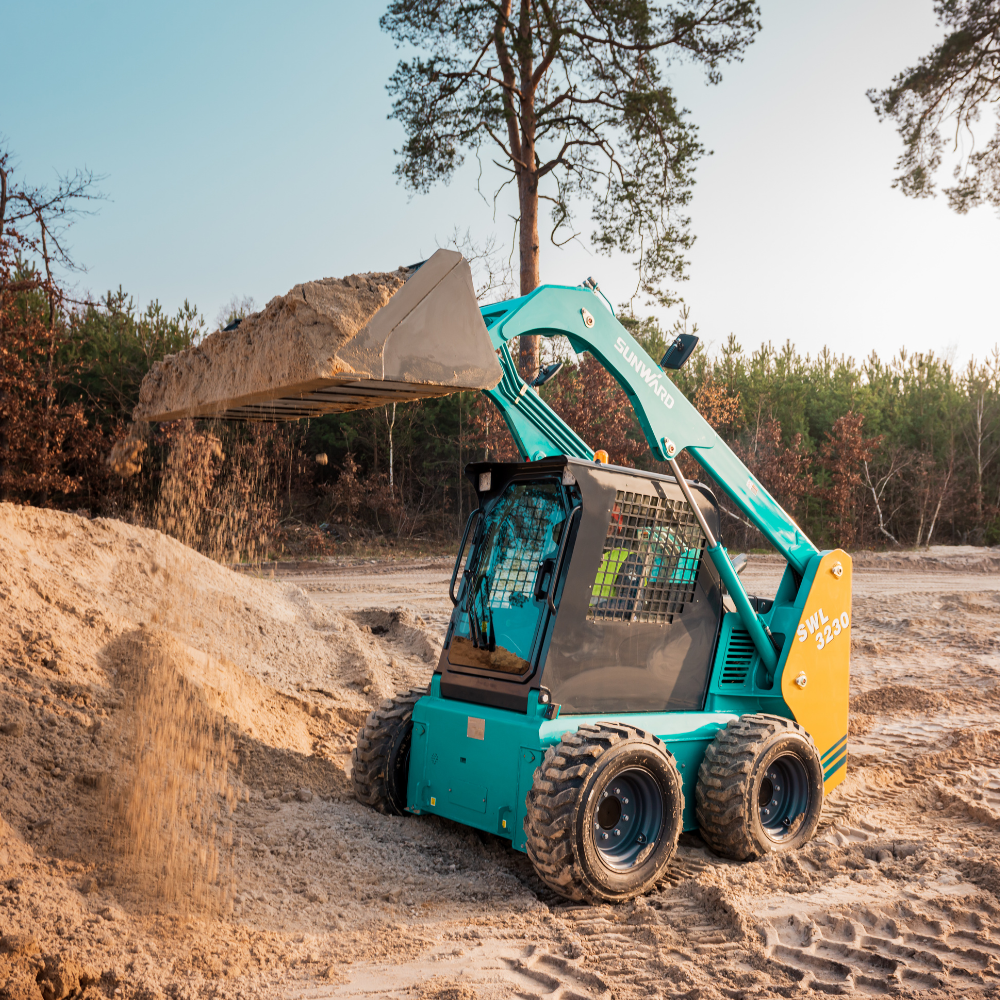

Skid Steer Loaders Sunward SWL3230
Skid Steer Loaders Sunward SWL3230
Skid Steer Loaders Sunward SWL3230
Skid Steer Loaders Sunward SWL3230
Skid Steer Loaders Sunward SWL3230
Skid Steer Loaders Sunward SWL3230
Skid Steer Loaders Sunward SWL3230
Skid Steer Loaders Sunward SWL3230

Visit Sunward live at

Technical specs - SWL3230 Sunward

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
3.5 t
Rated operating capacity
1100 kg
Bucket width
1.83 m
Driver protection
Kb
Steering mode
PL
Transport length
3.724 m
Transport width
1.83 m
Transport height
2.068 m
Travel speed
12.6 km/h
Max. discharge height
2.395 m
Model series
SWL
Engine manuf.
Kubota
Engine type
V3307CR-TE5B
Engine power
54.6 kW
Revolutions at max torque
2600 rpm
Max. torque
265/1500 Nm
No. of cylinders
4
Emission level
V

More technical details, like: track width, standard tyres, bucket capacity, lifting force, dimension lxwxh, displacement, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin and std. shovel with teeth

Special equipment

Diesel particulate filter
No
LPG motor
No
Burglar proof system
No
