L221 New Holland L221 Specifications & Technical Data (2016—2021)

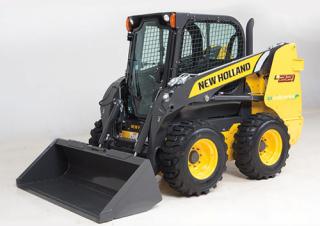

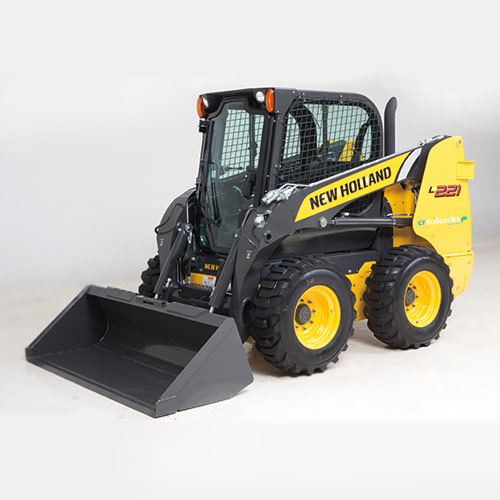

The New Holland L221 is a skid steer loader manufactured by New Holland from 2016 to 2021. It has a weight of 3.35 tons and a tran…

The New Holland L221 is a skid steer loader manufactured by New Holland from 2016 to 2021. It has a weight of 3.35 tons and a transport length of 2.993 meters. The bucket capacity is 0.62 cubic meters, with a bucket width of 1.9 meters. The maximum discharge height is 2.495 meters, and it has a travel speed of 18.2 km/h. The transport width is 1.758 meters, and the transport height is 2.002 meters. The lifting force is 38.2 kilonewtons, and the rated operating capacity is 905 kilograms.

Skid Steer Loaders New Holland L221

Technical specs - L221 New Holland

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
3.35 t
Rated operating capacity
905 kg
Bucket width
1.9 m
Bucket capacity
0.62 m³
Driver protection
KbR
Transport length
2.993 m
Transport width
1.758 m
Transport height
2.002 m
Travel speed
18.2 km/h
Max. discharge height
2.495 m
Lifting force
38.2 kN
Model series
L
Engine manuf.
FPT
Engine type
F5H
Engine power
55 kW
Displacement
3.4 l
Revolutions at max torque
1400 rpm
Max. torque
314 Nm
No. of cylinders
4
Cylinder bore x stroke
99x100 mm
Emission level
Tier 4 B

More technical details, like: track width, standard tyres, steering mode, dimension lxwxh are available in the full technical specs.

Basic model with ROPS cabin and std. shovel with teeth

Special equipment

Diesel particulate filter
No
LPG motor
No
Burglar proof system
No

Download datasheets (PDF)

New Holland L221 FAQ

When was the New Holland L221 manufactured?

The New Holland L221 was manufactured from 2016 to 2021.

How much does the New Holland L221 skid steer loader weigh?

The New Holland L221 skid steer loader weighs 3.35 tons.

What are the transport dimensions of the New Holland L221 skid steer loader?

The New Holland L221 skid steer loader has a transport length of 2.99 meters, a transport width of 1.76 meters, and a transport height of 2 meters.

What is the travel speed of the New Holland L221 skid steer loader?

The New Holland L221 skid steer loader has a travel speed of 18.2 km/h.

What are the power ratings of the New Holland L221 skid steer loader?

The source data does not provide power ratings for the New Holland L221 skid steer loader.

What is the material handling capacity of the New Holland L221 skid steer loader?

The New Holland L221 skid steer loader has a rated operating capacity of 905 kg and a maximum discharge height of 2.5 meters.

What are the specifications of the primary work tool on the New Holland L221 skid steer loader?

The primary work tool of the New Holland L221 skid steer loader has a bucket capacity of 0.62 cubic meters and a bucket width of 1.9 meters.

What operator safety and support features does the New Holland L221 skid steer loader have?

The New Holland L221 skid steer loader features a cabin with ROPS for driver protection.

How much is a New Holland L221 Skid steer loader (2016u20132021) worth?

The residual value of the New Holland L221 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

New Holland L221 overview

New Holland L221 features overview

Built around you.

New Holland skid steers and compact track loaders are reliable workhorses that stand up to any challenge you face. New Holland 200 series are built around you with reliable engines that deliver powerful performance, yet use less fuel and are easy to maintain and reduce your operating costs. Three different auxiliary hydraulics packages give maximum versatility. Offering class leading space, comfort and ergonomics, the Comfort Deluxe Cab also affords excellent all round visibility and reduced blind spots.


Comfort Deluxe Cab

The Comfort Deluxe Cab offers up to 25% more internal width than competition with greater head room and leg room. In addition, a fully sealed and pressurized cab minimizes noise, dust and exhaust infiltration. The low noise levels will be appreciated by people within the working range of the machine.


Environmentally friendly.

New Holland 200 series comply with Tier 4A & Tier 4B regulations, cutting emissions levels, with over 90% less particulate matter (PM) and 50% less nitrogen oxide (NOx) than the previous generation. In addition when you don’t need the full power of the machine, the variable flow hydraulic pump only uses the power required leading to significant extra-fuel savings as well as reduced operating noise.


Operator environment

All around visibility

A comprehensive view of the job site makes it easier for you to work productively and safely. The 200 series deliver:Clear and unobstructed view of the attachment and bucket edgeLarge visibility panel in the cab roof for a clear view of the attachment at full heightHigh visibility mesh side screensNarrow cab pillars to maximize visibility


Hydraulics

Versatility and ergonomics

A choice of control style is available: mechanical or electro-hydraulic controls can be selected.Electro-hydraulic controls are switchable between ISO to H pattern.Speed and sensitivity settings for travel, boom & bucket can be fine-tuned.Armrests can be adjusted up or down.Joystick position can be adjusted both vertically and horizontally.


Easy maintenance

Maintenance and servicing on 200 models couldn’t be easier; access for engine and hydraulic oil changes is via a removable cover on the left rear quarter.
