L213 New Holland L213 Specifications & Technical Data (2011—2015)

Model rating
8,80 / 10

The New Holland L213 is a skid steer loader manufactured by New Holland from 2011 to 2015. It has a weight of 2.27 tons and a tran…

The New Holland L213 is a skid steer loader manufactured by New Holland from 2011 to 2015. It has a weight of 2.27 tons and a transport length of 2.435 meters. The bucket capacity is 0.31 cubic meters, with a bucket width of 1.6 meters. The maximum discharge height is 2.154 meters. The transport width is 1.518 meters, and the transport height is 1.919 meters. The lifting force is 18.5 kilonewtons, and the rated operating capacity is 590 kilograms.

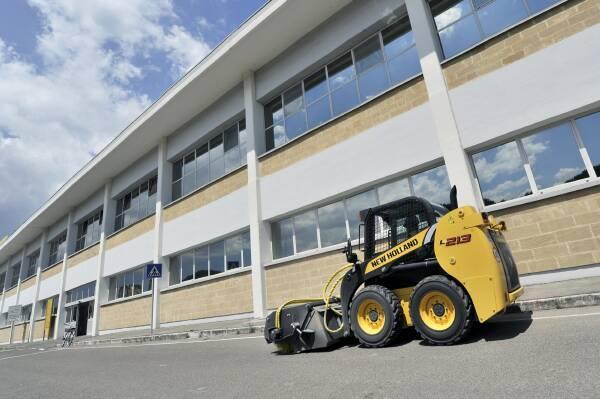

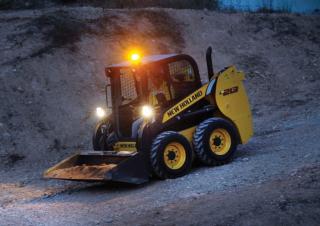

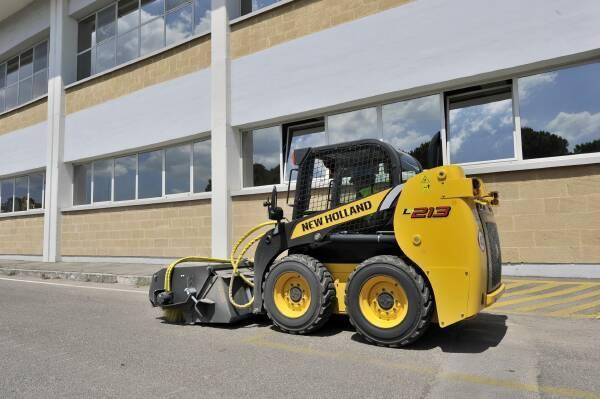

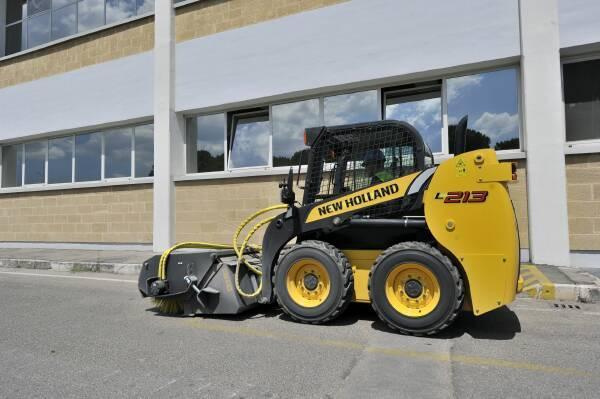

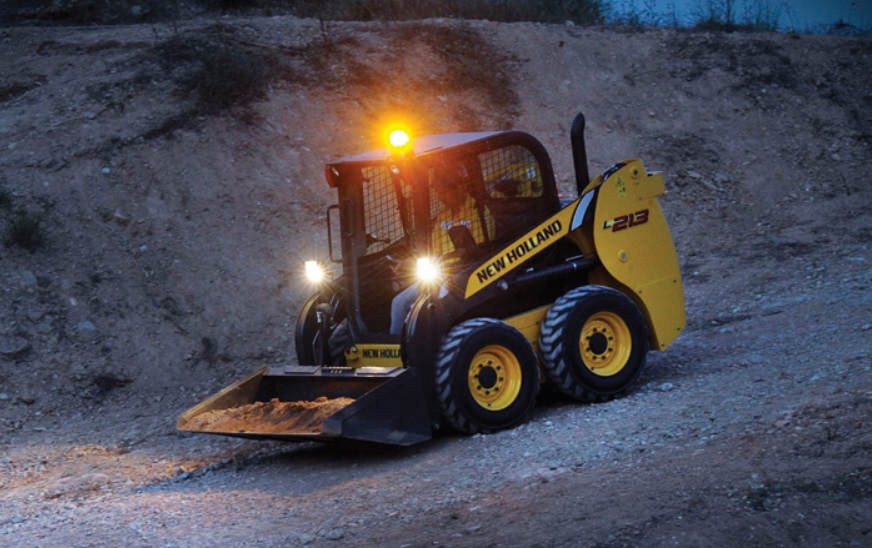

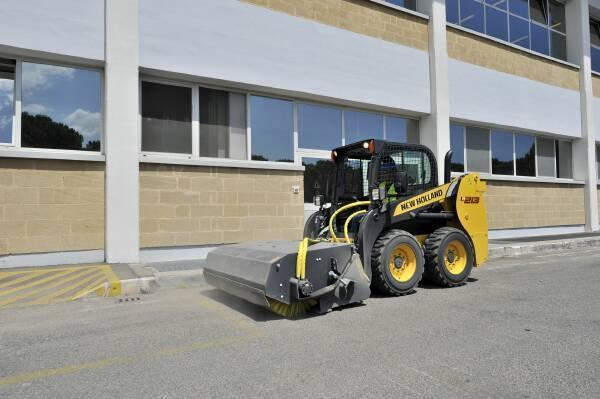

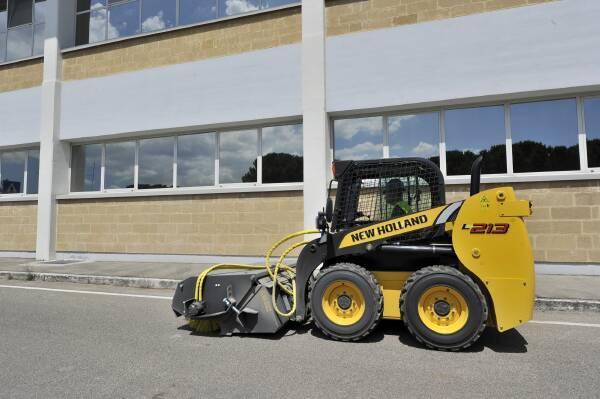

Skid Steer Loaders New Holland L213
Skid Steer Loaders New Holland L213
Skid Steer Loaders New Holland L213
Skid Steer Loaders New Holland L213
Skid Steer Loaders New Holland L213
Skid Steer Loaders New Holland L213
Skid Steer Loaders New Holland L213
Skid Steer Loaders New Holland L213
Skid Steer Loaders New Holland L213
Skid Steer Loaders New Holland L213
Skid Steer Loaders New Holland L213
Skid Steer Loaders New Holland L213

Technical specs - L213 New Holland

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
2.27 t
Rated operating capacity
590 kg
Bucket width
1.6 m
Bucket capacity
0.31 m³
Driver protection
KbR
Transport length
2.435 m
Transport width
1.518 m
Transport height
1.919 m
Travel speed
10.8 km/h
Max. discharge height
2.154 m
Lifting force
18.5 kN
Model series
L
Engine manuf.
ISM
Engine type
N 844
Engine power
32 kW
Displacement
2 l
Revolutions at max torque
1750 rpm

More technical details, like: track width, standard tyres, steering mode, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin and std. shovel with teeth

Special equipment

Diesel particulate filter
No
LPG motor
No
Burglar proof system
No

Download datasheets (PDF)

New Holland L213 FAQ

When was the New Holland L213 manufactured?

The New Holland L213 was manufactured from 2011 to 2015.

How much does the New Holland L213 skid steer loader weigh?

The New Holland L213 skid steer loader weighs 2.27 tons.

What are the transport dimensions of the New Holland L213 skid steer loader?

The New Holland L213 skid steer loader has a transport length of 2.44 meters, a transport width of 1.52 meters, and a transport height of 1.92 meters.

What is the travel speed of the New Holland L213 skid steer loader?

The New Holland L213 skid steer loader has a travel speed of 10.8 km/h.

What is the lifting force of the New Holland L213 skid steer loader?

The New Holland L213 skid steer loader has a lifting force of 18.5 kN.

What is the material handling capacity of the New Holland L213 skid steer loader?

The New Holland L213 has a rated operating capacity of 590 kg and a maximum discharge height of 2.15 meters.

What are the bucket specifications of the New Holland L213 skid steer loader?

The New Holland L213 skid steer loader has a bucket capacity of 0.31 cubic meters and a bucket width of 1.6 meters.

What operator safety features does the New Holland L213 have?

The New Holland L213 has driver protection in the form of a cabin with ROPS.

How much is a New Holland L213 Skid steer loader (2011u20132015) worth?

The residual value of the New Holland L213 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Reviews

Model rating
8,80 / 10
Quotation mark

New Holland L213 user from United States

Very dependable and easy to operate

Quotation mark

New Holland L213 user from Argentina

Electronics problems on the computer,the hydraulic pipes under the engine are dificult to fix.

Quotation mark

New Holland L213 user from Chile

Very versatile to perform various types of work

Quotation mark

New Holland L213 user from Peru

very good

Quotation mark

New Holland L213 user from Peru

Yes, it does a good job

Quotation mark

New Holland L213 user from Canada

Nice operating, very solid, fast operating, very stable
