N 50 Neumeier N 50 Specifications & Technical Data (2006—2020)

The Neumeier N 50 is a skid steer loader manufactured since 2006. It has a weight of 3 tons and a transport length of 3.41 meters.…

The Neumeier N 50 is a skid steer loader manufactured since 2006. It has a weight of 3 tons and a transport length of 3.41 meters. The bucket capacity is 0.35 cubic meters with a width of 1.82 meters. The maximum discharge height is 2.3 meters. It has a travel speed of 12 km/h and a transport width of 1.78 meters. The transport height is 2 meters. The rated operating capacity is 1500 kilograms.

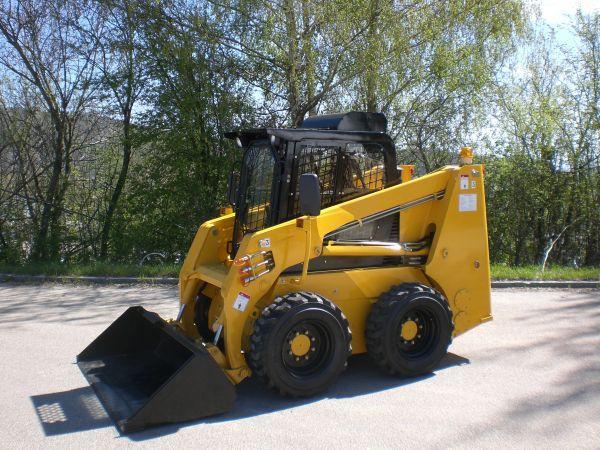

Skid Steer Loaders Neumeier N 50
Skid Steer Loaders Neumeier N 50
Skid Steer Loaders Neumeier N 50
Skid Steer Loaders Neumeier N 50
Skid Steer Loaders Neumeier N 50
Skid Steer Loaders Neumeier N 50
Skid Steer Loaders Neumeier N 50
Skid Steer Loaders Neumeier N 50
Skid Steer Loaders Neumeier N 50
Skid Steer Loaders Neumeier N 50
Skid Steer Loaders Neumeier N 50
Skid Steer Loaders Neumeier N 50

Technical specs - N 50 Neumeier

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
3 t
Rated operating capacity
1500 kg
Standard tyres
10x16.5
Bucket width
1.82 m
Bucket capacity
0.35 m³
Driver protection
KbR
Steering mode
PL
Transport length
3.41 m
Transport width
1.78 m
Transport height
2 m
Travel speed
12 km/h
Max. discharge height
2.3 m
Model series
N
Engine manuf.
Xinchai
Engine type
C 490 BG-EPA
Engine power
36.8 kW
Revolutions at max torque
2650 rpm

More technical details, like: track width, lifting force, dimension lxwxh, displacement, max. torque, no. of cylinders, cylinder bore x stroke, emission level, lift geometry, access, engine model, rated speed...

More technical details, like: track width, lifting force, dimension lxwxh, displacement, max. torque, no. of cylinders, cylinder bore x stroke, emission level, lift geometry, access, engine model, rated speed, engine output - net, transmission type, tyre size, length - with bucket, width - no bucket, width - with bucket, height - top of cab, ground clearance, wheelbase, height to hinge pin, dump height - maximum, reach - max dump height, fuel tank, heaped capacity, tipping load, operating capacity, speed - maximum, pump flow, system pressure, operating weight are available in the full technical specs.

Basic model with ROPS cabin and std. shovel with teeth

Special equipment

Diesel particulate filter
No
LPG motor
No
Burglar proof system
No

Download datasheets (PDF)

Neumeier N 50 FAQ

When was the Neumeier N 50 manufactured?

The Neumeier N 50 was first produced in 2006.

How much does the Neumeier N 50 skid steer loader weigh?

The Neumeier N 50 skid steer loader weighs 3 tons.

What are the transport dimensions of the Neumeier N 50 skid steer loader?

The Neumeier N 50 has a transport length of 3.41 meters, a transport width of 1.78 meters, and a transport height of 2 meters.

What is the travel speed of the Neumeier N 50 skid steer loader?

The Neumeier N 50 skid steer loader has a travel speed of 12 km/h.

What are the standard tyres specifications of the Neumeier N 50 skid steer loader?

The Neumeier N 50 skid steer loader has standard tyres sized 10x16.5.

What type of steering does the Neumeier N 50 skid steer loader use for maneuverability?

The Neumeier N 50 skid steer loader uses tank steering for maneuverability.

What is the material handling capacity of the Neumeier N 50 skid steer loader?

The Neumeier N 50 skid steer loader has a rated operating capacity of 1500 kg and a maximum discharge height of 2.3 meters.

What are the specifications of the bucket on the Neumeier N 50 skid steer loader?

The Neumeier N 50 skid steer loader has a bucket with a capacity of 0.35 cubic meters and a width of 1.82 meters.

What operator safety and support features does the Neumeier N 50 skid steer loader have?

The Neumeier N 50 skid steer loader features a cabin with ROPS for driver protection.
