960 Mustang 960 Specifications & Technical Data (1991—1995)

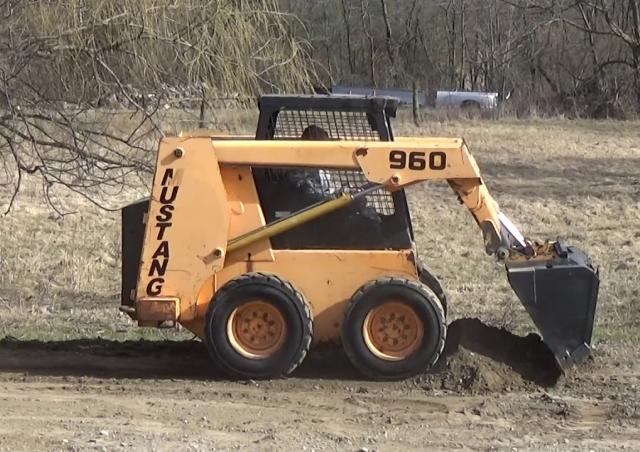

The Mustang 960 is a skid steer loader manufactured by Mustang from 1991 to 1995. It has a weight of 3.15 tons and a transport len…

The Mustang 960 is a skid steer loader manufactured by Mustang from 1991 to 1995. It has a weight of 3.15 tons and a transport length of 3.35 meters. The bucket capacity is 0.39 cubic meters, with a transport width of 1.72 meters and a transport height of 2.09 meters. The rated operating capacity of this construction machine is 771 kilograms.

Skid Steer Loaders Mustang 960

Technical specs - 960 Mustang

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
3.15 t
Rated operating capacity
771 kg
Standard tyres
12-16.5
Bucket capacity
0.39 m³
Transport length
3.35 m
Transport width
1.72 m
Transport height
2.09 m
Travel speed
10.9 km/h
Engine manuf.
Isuzu
Engine type
4 JB 1
Engine power
42 kW

More technical details, like: track width, bucket width, driver protection, steering mode, max. discharge height, lifting force, model series, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders...

More technical details, like: track width, bucket width, driver protection, steering mode, max. discharge height, lifting force, model series, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin and std. shovel with teeth

Special equipment

Diesel particulate filter
No
LPG motor
No
Burglar proof system
No

Mustang 960 FAQ

When was the Mustang 960 manufactured?

The Mustang 960 was manufactured from 1991 to 1995.

How much does the Mustang 960 skid steer loader weigh?

The Mustang 960 skid steer loader weighs 3.15 tons.

What are the transport dimensions of the Mustang 960 skid steer loader?

The Mustang 960 skid steer loader has a transport length of 3.35 meters, a transport width of 1.72 meters, and a transport height of 2.09 meters.

What is the travel speed of the Mustang 960 skid steer loader?

The Mustang 960 skid steer loader has a travel speed of 10.9 km/h.

What are the undercarriage specifications of the Mustang 960 skid steer loader?

The Mustang 960 skid steer loader comes with standard tyres sized 12-16.5.

What is the rated operating capacity of the Mustang 960 skid steer loader?

The Mustang 960 skid steer loader has a rated operating capacity of 771 kilograms.

What is the bucket capacity of the Mustang 960 skid steer loader?

The Mustang 960 skid steer loader has a bucket capacity of 0.39 cubic meters.

How much is a Mustang 960 Skid steer loader (1991u20131995) worth?

The residual value of the Mustang 960 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
