3200VT Mustang 3200VT Specifications & Technical Data (2018—2025)

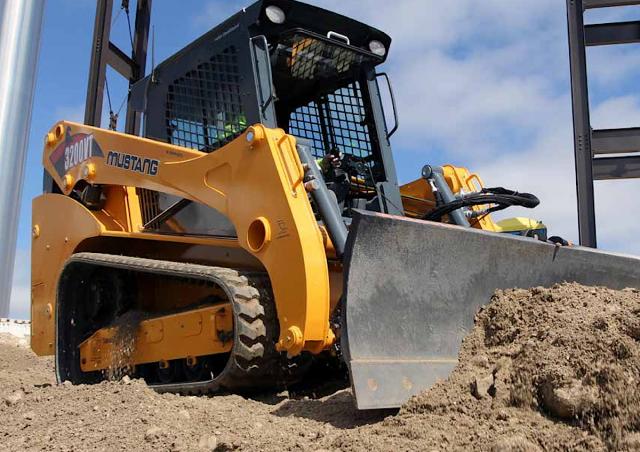

The Mustang 3200VT is a skid steer loader manufactured by Mustang since 2018. It has a weight of 5.27 tons and a transport length …

The Mustang 3200VT is a skid steer loader manufactured by Mustang since 2018. It has a weight of 5.27 tons and a transport length of 3.24 meters. The bucket width is 2.13 meters, and the maximum discharge height is 2.53 meters. It has a travel speed of 12.6 km/h, with a transport width of 1.77 meters and a transport height of 2.11 meters. The rated operating capacity is 1452 kilograms, and it comes with a special burglar-proof system.

Skid Steer Loaders Mustang 3200VT

Technical specs - 3200VT Mustang

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
5.27 t
Rated operating capacity
1452 kg
Bucket width
2.13 m
Driver protection
KbR
Transport length
3.24 m
Transport width
1.77 m
Transport height
2.11 m
Travel speed
12.6 km/h
Max. discharge height
2.53 m
Model series
Track
Engine manuf.
Deutz
Engine type
TD 3.6
Engine power
80.8 kW
Displacement
3.6 l
Max. torque
430 Nm
No. of cylinders
4
Emission level
fTier 4

More technical details, like: track width, standard tyres, bucket capacity, steering mode, lifting force, dimension lxwxh, revolutions at max torque, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin and std. shovel with teeth

Special equipment

Diesel particulate filter
No
LPG motor
No
Burglar proof system
Yes

Download datasheets (PDF)

Mustang 3200VT FAQ

When was the Mustang 3200VT manufactured?

The Mustang 3200VT was first produced in 2018.

How much does the Mustang 3200VT weigh?

The Mustang 3200VT weighs 5.27 tons.

What are the transport dimensions of the Mustang 3200VT skid steer loader?

The Mustang 3200VT has a transport length of 3.24 meters, a transport width of 1.77 meters, and a transport height of 2.11 meters.

What is the travel speed of the Mustang 3200VT skid steer loader?

The Mustang 3200VT has a travel speed of 12.6 km/h.

What is the material handling capacity of the Mustang 3200VT skid steer loader?

The Mustang 3200VT has a rated operating capacity of 1452 kg and a maximum discharge height of 2.53 meters.

What is the bucket width of the Mustang 3200VT skid steer loader?

The Mustang 3200VT skid steer loader has a bucket width of 2.13 meters.

What operator safety and support features does the Mustang 3200VT have?

The Mustang 3200VT is equipped with a cabin that includes ROPS for driver protection.
