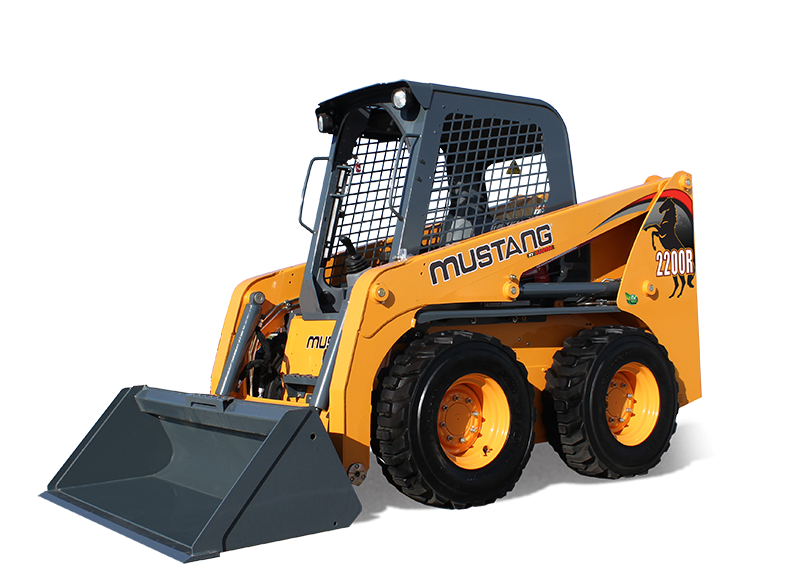

    Mustang 2200R Specifications & Technical Data (2017-2022)

    Rate this machine now!

    Weight: 3.62t – Rated operating capacity: 998kg – Standard tyres: 12.00x16.5 HD – Bucket width: 1.778m – Driver protection: KbR – Transport length: 3.467m

    Technical specs - 2200R Mustang

    Specification

    Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.

    • Weight 3.62 t
    • Rated operating capacity 998 kg
    • Standard tyres 12.00x16.5 HD
    • Bucket width 1.778 m
    • Driver protection KbR
    • Transport length 3.467 m
    • Transport width 1.664 m
    • Transport height 2.057 m
    • Travel speed 12.9 km/h
    • Max. discharge height 2.388 m
    • Engine manuf. Yanmar
    • Engine type 4TNV98CT-NMS
    • Engine power 52.7 kW
    • Displacement 3.3 l
    • Revolutions at max torque 1625 rpm
    • Max. torque 294 Nm
    • Emission level Tier 4

    More technical details, like: track width, bucket capacity, steering mode, lifting force, dimension lxwxh, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

    Basic model with ROPS cabin and std. shovel with teeth

    Special equipment

    • Diesel particulate filter
    • LPG motor
    • Burglar proof system

    Carbon footprint calculator for Skid Steer Loaders

    Use the ERA equipment CO2 Calculator to estimate the CO2 emissions per hour of use of the Mustang 2200R or alternative Skid Steer Loaders.

    The carbon emission calculation can be carried out considering different energy consumption scenarios or other variables.

    or go to the ERA Equipment CO2 Calculator to find out how to optimise your CO2 emissions.

    service provided by ERA

    Solutions

    The all-in-one 3D machine control solution for your entire fleet

    Due to the visualisation of the required result, the machine control brings many benefits:

    • Accuracy and fast goal achievements
    • Safety increases – all is managed by the machine operator
    • Lower fuel consumption – environmental friendliness
    • Limiting project delays by significantly reducing the risk of accidental damage to utility or pipe
    • Simpler documentation activities with data exported in CSV format

    Find out more details about how the machine control solution can help you in your daily routine on our website or come visit us at bauma.

    Hexagon teaser
    Ein Service von: Hexagon

    The auction format is a winner in today's market

    When the market for new equipment is tight, the market for used equipment is booming. As the supply is low and the demand high - it is a win/win situation for both buyers and sellers on auction sites.

    Learn more about the benefits of trading via auction and discover all the auctions to place a bid on right now!

    Blinto
    Find out more
    Service provided by: Blinto

    Used Mustang Skid Steer Loaders for sale

    LECTURA collects attractive offers on the market about Skid Steer Loaders.
    Find current offers on liked classified websites offering second hand Skid Steer Loaders for sale in many countries.

    Get in touch for more details:

    Compare Mustang 2200R with similar Skid Steer Loaders

    Press 1 image

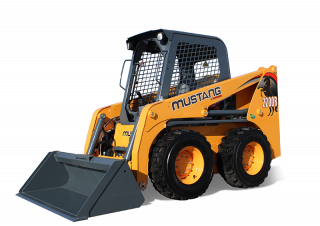

    Mustang 2200R
