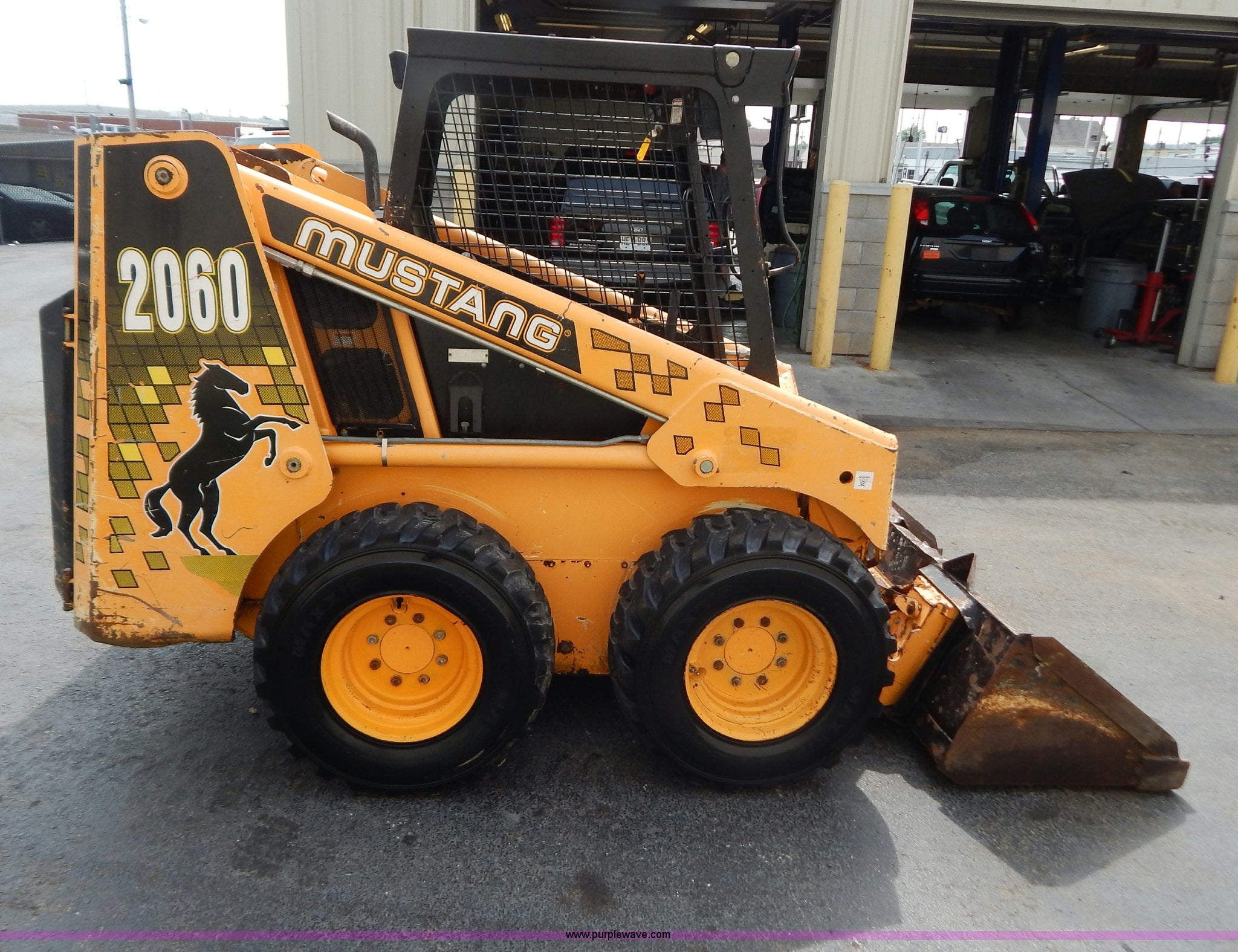

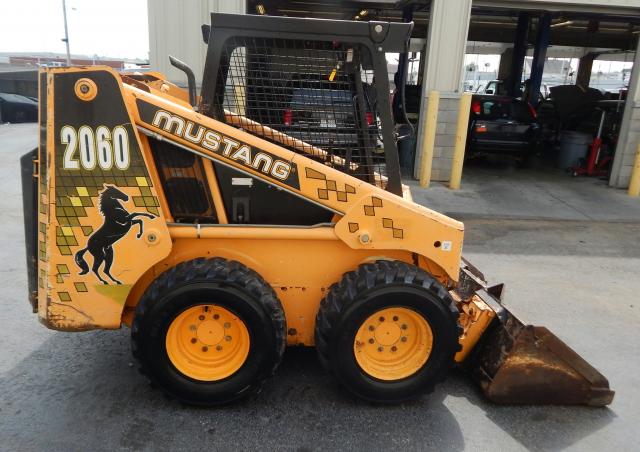

2060 Mustang 2060 Specifications & Technical Data (1996—2000)

The Mustang 2060 Skid Steer Loader, manufactured from 1996 to 2000, has a weight of 3.17 tons. It has a transport length of 3.35 m…

The Mustang 2060 Skid Steer Loader, manufactured from 1996 to 2000, has a weight of 3.17 tons. It has a transport length of 3.35 meters and a bucket capacity of 0.39 cubic meters. With a travel speed of 11 km/h, it has a transport width of 1.72 meters and a transport height of 2.09 meters. The rated operating capacity of this construction machine is 794 kilograms.

Skid Steer Loaders Mustang 2060

Technical specs - 2060 Mustang

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
3.17 t
Rated operating capacity
794 kg
Standard tyres
12-16.5
Bucket capacity
0.39 m³
Transport length
3.35 m
Transport width
1.72 m
Transport height
2.09 m
Travel speed
11.0 km/h
Engine manuf.
Isuzu
Engine type
4 JB 1
Engine power
46.3 kW

More technical details, like: track width, bucket width, driver protection, steering mode, max. discharge height, lifting force, model series, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders...

More technical details, like: track width, bucket width, driver protection, steering mode, max. discharge height, lifting force, model series, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level, access, engine manufacturer, engine model, aspiration, rated speed, engine output - net, transmission type, length - no bucket, length - with bucket, width - no bucket, width - with bucket, height - top of cab, ground clearance, wheelbase, rear departure angle, height to hinge pin, dump angle, dump height - maximum, reach - max dump height, turning radius - rear corner, turning radius - bucket corner, tipping load, operating capacity, speed - maximum, breakout - lift, breakout - bucket, pump type, pump flow, system pressure, operating weight are available in the full technical specs.

Basic model with ROPS cabin and std. shovel with teeth

Special equipment

Diesel particulate filter
No
LPG motor
No
Burglar proof system
No

Mustang 2060 FAQ

When was the Mustang 2060 skid steer loader manufactured?

The Mustang 2060 skid steer loader was manufactured from 1996 to 2000.

How much does the Mustang 2060 skid steer loader weigh?

The Mustang 2060 skid steer loader weighs 3.17 tons.

What are the transport dimensions of the Mustang 2060 skid steer loader?

The Mustang 2060 skid steer loader has a transport length of 3.35 meters, a transport width of 1.72 meters, and a transport height of 2.09 meters.

What is the travel speed of the Mustang 2060 skid steer loader?

The Mustang 2060 skid steer loader has a travel speed of 11 km/h.

What are the undercarriage specifications of the Mustang 2060 skid steer loader?

The Mustang 2060 skid steer loader is equipped with standard tyres sized 12-16.5.

What is the material handling capacity of the Mustang 2060 skid steer loader?

The Mustang 2060 skid steer loader has a rated operating capacity of 794 kilograms.

What is the bucket capacity of the Mustang 2060 skid steer loader?

The Mustang 2060 skid steer loader has a bucket capacity of 0.39 cubic meters.

How much is a Mustang 2060 Skid steer loader (1996u20132000) worth?

The residual value of the Mustang 2060 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
