2026 Mustang 2026 Specifications & Technical Data (2011—2018)

The Mustang 2026 is a skid steer loader manufactured by Mustang from 2011 to 2018. It has a weight of 1.91 tons and a transport le…

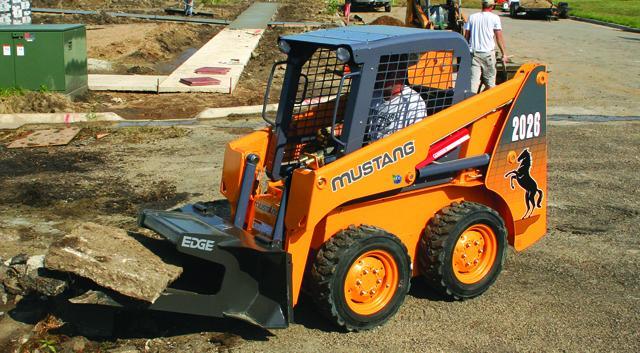

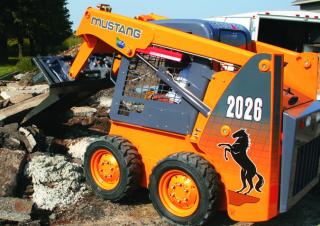

The Mustang 2026 is a skid steer loader manufactured by Mustang from 2011 to 2018. It has a weight of 1.91 tons and a transport length of 2.9 meters. The bucket capacity is 0.28 cubic meters, with a bucket width of 1.38 meters. The maximum discharge height is 2.15 meters. The transport width is 1.23 meters, and the transport height is 1.79 meters. The rated operating capacity is 476 kilograms. It also comes with a special equipment feature, a burglar-proof system.

2026

Years of manufacture: 2011—2018

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 2026 Mustang

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 1.91 t

Rated operating capacity: 476 kg

Standard tyres: 27x8.5x15

Bucket width: 1.38 m

Bucket capacity: 0.28 m³

Driver protection: Kb

Steering mode: AL

Transport length: 2.9 m

Transport width: 1.23 m

Transport height: 1.79 m

Travel speed: 10.9 km/h

Max. discharge height: 2.15 m

Model series: Radialhub

Engine manuf.: Yanmar

Engine type: 3TNV88

Engine power: 26.1 kW

Displacement: 1.64 l

Revolutions at max torque: 1680 rpm

Max. torque: 108 Nm

Emission level: Tier 4

More technical details, like: track width, lifting force, dimension lxwxh, no. of cylinders, cylinder bore x stroke, lift geometry, access, telematics available, engine manufacturer, engine model, emission rating, aspiration, rated speed, engine output - net, torque, transmission type, tyre size, length - no bucket, length - with bucket, width - no bucket, width - with bucket, height - top of cab, ground clearance, wheelbase, rear departure angle, height to hinge pin, dump angle, dump height - maximum, reach - max dump height, lift height, turning radius - rear corner, turning radius - bucket corner, fuel tank, tipping load, operating capacity, speed - maximum, breakout - lift, breakout - bucket, pump type, hydraulic power, pump flow, system pressure, self levelling, operating weight are available in the full technical specs.

Basic model with ROPS cabin and std. shovel with teeth

Special equipment

Diesel particulate filter: No
LPG motor: No
Burglar proof system: Yes

Download datasheets (PDF)

Mustang 2026 FAQ

When was the Mustang 2026 skid steer loader manufactured?

The Mustang 2026 skid steer loader was manufactured from 2011 to 2018.

How much does the Mustang 2026 skid steer loader weigh?

The Mustang 2026 skid steer loader weighs 1.91 tons.

What are the transport dimensions of the Mustang 2026 skid steer loader?

The Mustang 2026 skid steer loader has a transport length of 2.9 meters, a transport width of 1.23 meters, and a transport height of 1.79 meters.

What is the travel speed of the Mustang 2026 skid steer loader?

The Mustang 2026 skid steer loader has a travel speed of 10.9 km/h.

What is the standard tyre size of the Mustang 2026 skid steer loader?

The Mustang 2026 skid steer loader has standard tyres sized 27x8.5x15.

What is the steering mode of the Mustang 2026 skid steer loader?

The Mustang 2026 skid steer loader has an all-wheel steering mode.

What is the material handling capacity of the Mustang 2026 skid steer loader?

The Mustang 2026 skid steer loader has a rated operating capacity of 476 kg and a maximum discharge height of 2.15 meters.

What are the bucket specifications of the Mustang 2026 skid steer loader?

The Mustang 2026 skid steer loader has a bucket capacity of 0.28 cubic meters and a bucket width of 1.38 meters.

What operator safety features does the Mustang 2026 skid steer loader have?

The Mustang 2026 skid steer loader has a driver protection cabin.

How much is a Mustang 2026 Skid steer loader (2011u20132018) worth?

The residual value of the Mustang 2026 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Mustang 2026 overview

Engine

Power up

With a 35-hp Yanmar diesel engine, the 2026 packs a load capacity of 1050 lbs. for great performance in a small package.

Operator environment

Unique

A restraint bar system, tied into the Hydraloc safety system, provides added safety and is adjustable for operator comfort.

Frame / loader / backhoes

Compact

A low-profile design and minimal width of 48.4 inches makes working in small spaces easy. Low overhead height of 70.3 inches with standard tires allows entrance into low-clearance buildings.

Machine inspection

Ask for inspection of your Mustang 2026 from experts

Mevas is an international operating inspection service for used heavy machinery. Construction machinery inspectors are available in more than 20 countries.

Use this service to minimise the risk when buying used equipment. An inspection by Mevas costs less than repairing a defective hydraulic cylinder.

Enquire machine inspection
